REXROTH SYNAX200 - Fibre-Optics Cable Accessories

SYNAX200 Set-Up SYNAX200 Ring 8-3
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
Glass fibre-optics cable for internal and external control cabinet use with
reinforced casing. The diameter of this fibre-optics cable equals 3 mm.
LWL cable ø 3,0 mm
connector
protective cap
SY6PR025.FH7

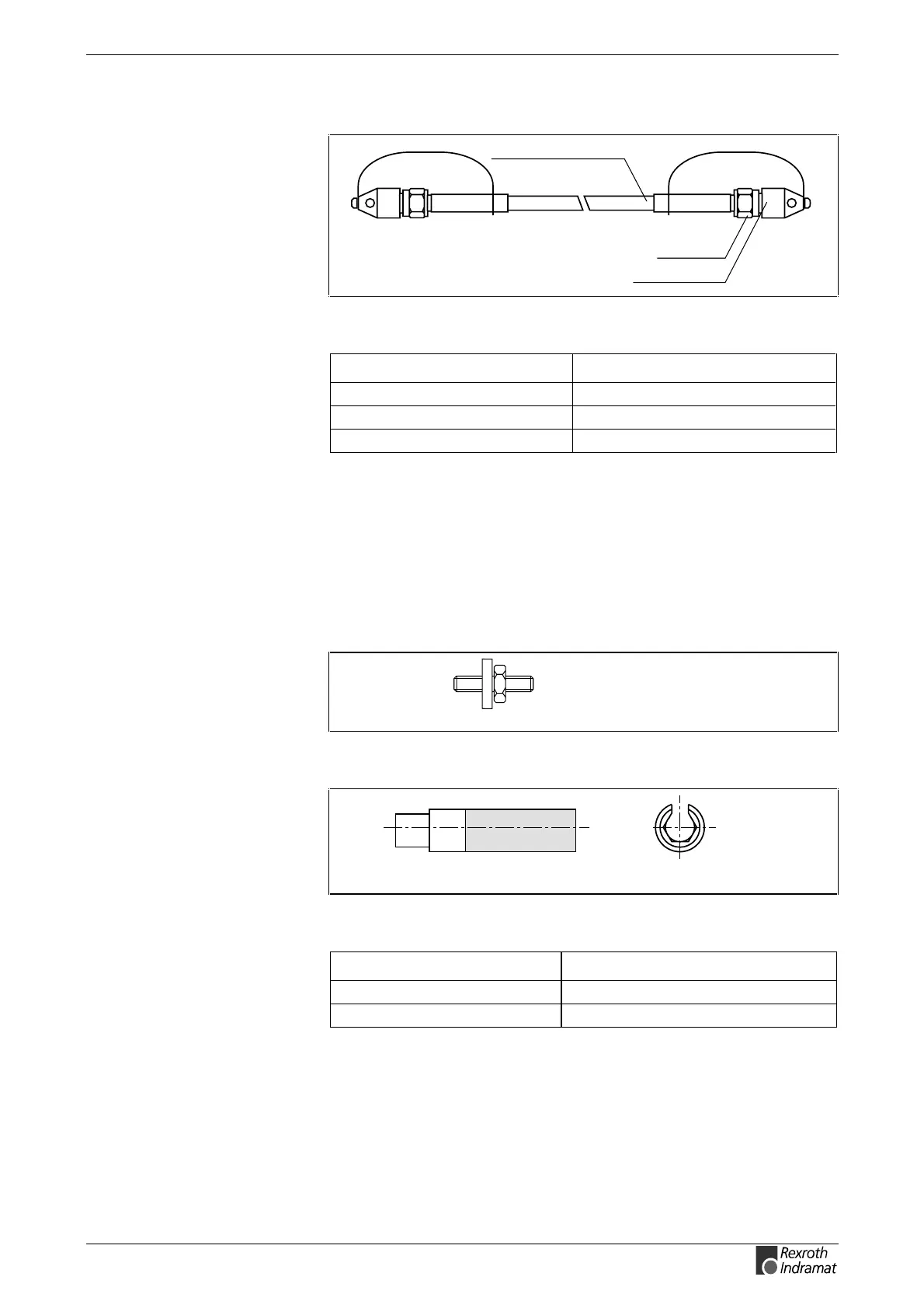

Fig. 8-5: Glass fibre-optics cable 3 mm (IKO 001)
Type of fiber optic cable Part number
plastic fibre-optics cable, 2.2 mm IKO0982/xx
plastic fibre-optics cable, 6 mm IKO0985/xx
glass fibre-optics cable, 3 mm IKO0001/xx
Fig. 8-6: Part numbers of fibre-optics cable types (xx: lengths in meters)
Fibre-Optics Cable Accessories
Accessories of the fibre-optics cables are:
• fibre-optics cable leadthroughs
• wrench for FSMA connector
SY6PR026.FH7
Fig. 8-7: Fibre-optics cable leadthroughs
SY6PR027.FH7
Fig. 8-8: Wrench for FSMA connector
Name Order identification
fibre-optics cable leadthrough PLUG-IN-LWL DF
wrench fibre-optics cable FSMA TOOL WRENCH LWL-FSMA
Fig. 8-9: Fibre-optics cable accessories
Glass fibre-optics cable 3 mm
Order information
