SYNAX200 PPC Motion Control Configuration 4-1
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
4 PPC Motion Control Configuration
4.1 Brief Description
121212
7
5
3
4
1
2
8
9
11
10
6
13
5
7
6
3
4
1
2
13
12
10
11
9
8
PPC-R02.2PPC-R01.2
8
7
13
12
11
10
9
6
5
4
3
2
11
Key for display switchover
or other usage
Slot for the PC card-compatible
firmware module
Reset key S2
Distortion display H2
for SERCOS interface
Fibre-optic emitter
for SERCOS interface
Fibre-optic receiver
for SERCOS interface
X1 voltage supply and
watchdog
Status display H1
Optional slot
X16 Programming interface (COM)
X10 Serial interface (PROG)
Earthing bolt
X15 BT bus for connecting
up to 6 devices (PLC only)
8888
PPC-R01.2
H1
PROG
U2
X1
I1
I3
I2
Q1
Q2
24V
e
0V
e
Bb
Bb
24V
0V
S1
RX
TX
U1
RESET
H2
DIST
COM
X16
S2
X10
PPC-R02.2
H1
PROG
U2
X10
X1
Q1
Q2
24V
e
0V
e
Bb
Bb
24V
0V
S1
RX
TX
U1
RESET
H2
DIST
COM
X16
U3 U4
8888
I1
I3
I2
S2
RECO
RECO
Vorstellung.FH7

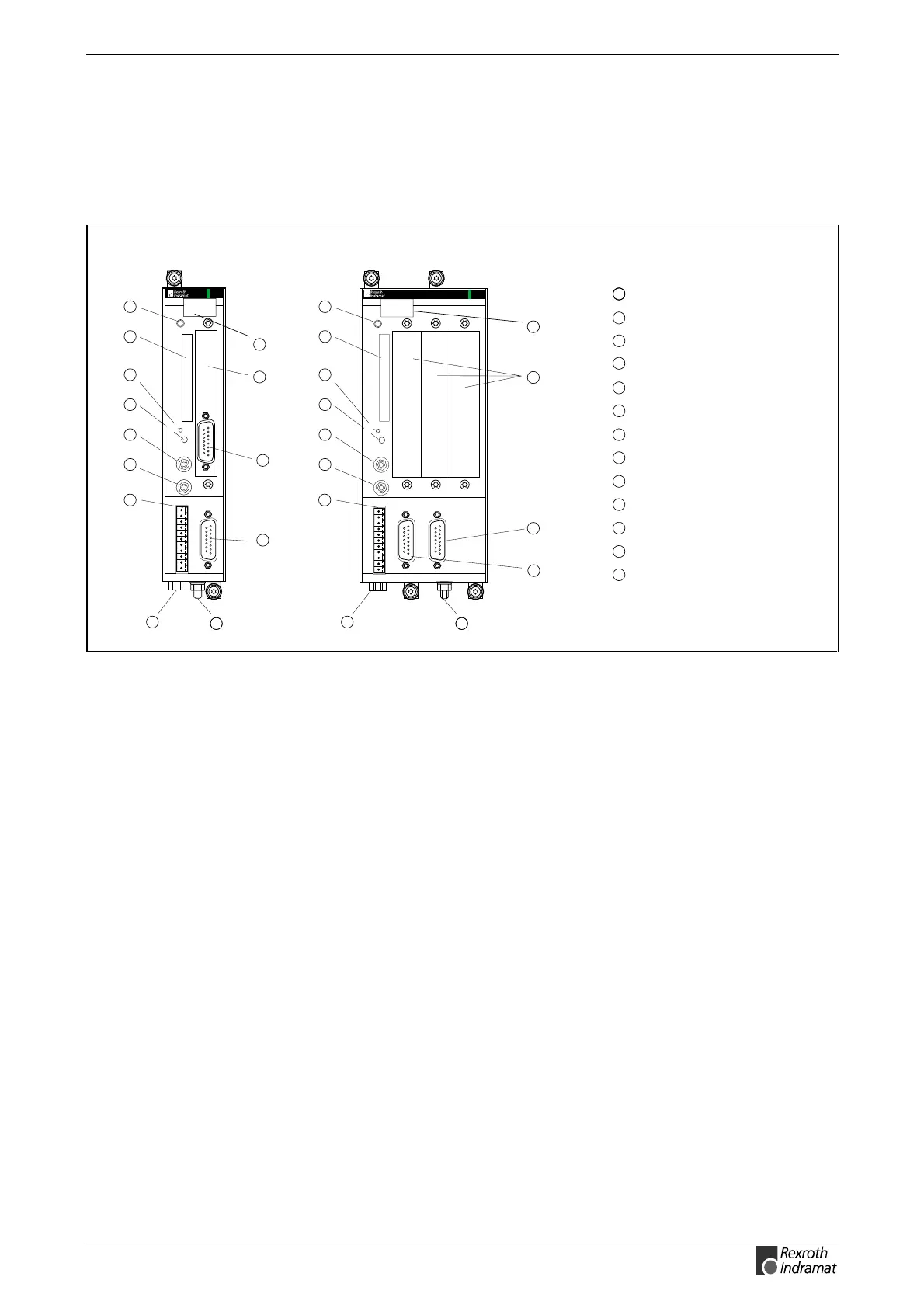

Fig. 4-1: PPC-R01.2 and PPC-R02.2
The PPC-R unit is a powerful controller in a small size in IP 20 rating. It is
a general-purpose platform that works as a PLC or as an NC controller,
depending on the application and the loaded software.
The PPC-R unit exists with two enclosure versions of different width. A
single-width version and a double-width version.
The two interfaces that are available on the controller are fully connected
according to the Indramat standard (SIS = Serial Indramat Interface). The
data transfer type (function) is only selected by the related application
(RS232/RS422/RS485). With PPC-R01, the COM interface is brought out
via a separate slot plate if this has not yet been assigned for a different
purpose (by the PC/104 Field bus, for example).
Furthermore, the PPC-R unit has a BT bus (operator input terminal bus)
that permits application-related operator input terminals (BTM15/16,
BTA20, etc.) to be used. This is possible with a cable length of up to 50
m.
To install the PPC-R unit, a module carrier system is used that consists of
one or more RMB02.2-04 units. The double carrier RMB02.2-02 can only
be used as an installation carrier. It is merely used for fixing the PPC-R
units; RECO modules cannot be controlled. Interconnecting several PPC-
R units via a backplane is not possible either.
The PPC-R01.2 unit occupies one slot in the module carrier; the PPC-
R02.2 occupies two units. In this carrier system, the PPC-R unit can
handle up to 15 further I/O modules (RME02.2..., RMA02.2... or
RMC02.2...).
Depending on the application, the PPC-R has PC/104 modules fitted that,
for example, can be used for open field bus interfaces, such as Interbus,
Profibus, etc.
