4.4 Slot Addressing of the Module Carriers
A maximum of 4 module carriers RMB02.2-04 can be installed side by
side. To be able to address the module carriers, there is a DIP switch on
the bus board of the module carriers. Depending on the module carrier,
the switch must be set to the corresponding module carrier number
(module carrier address 00-03, see diagram below). Each module carrier
number may only be set once.
S1S1 S1S1
Slot
Setting for basic
carrier No. 1
Setting for basic
carrier No. 2
Setting for basic
carrier No. 4
Setting for basic
carrier No. 3
S1 S1 S1 S1
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
RMB02.2_Adress.FH7

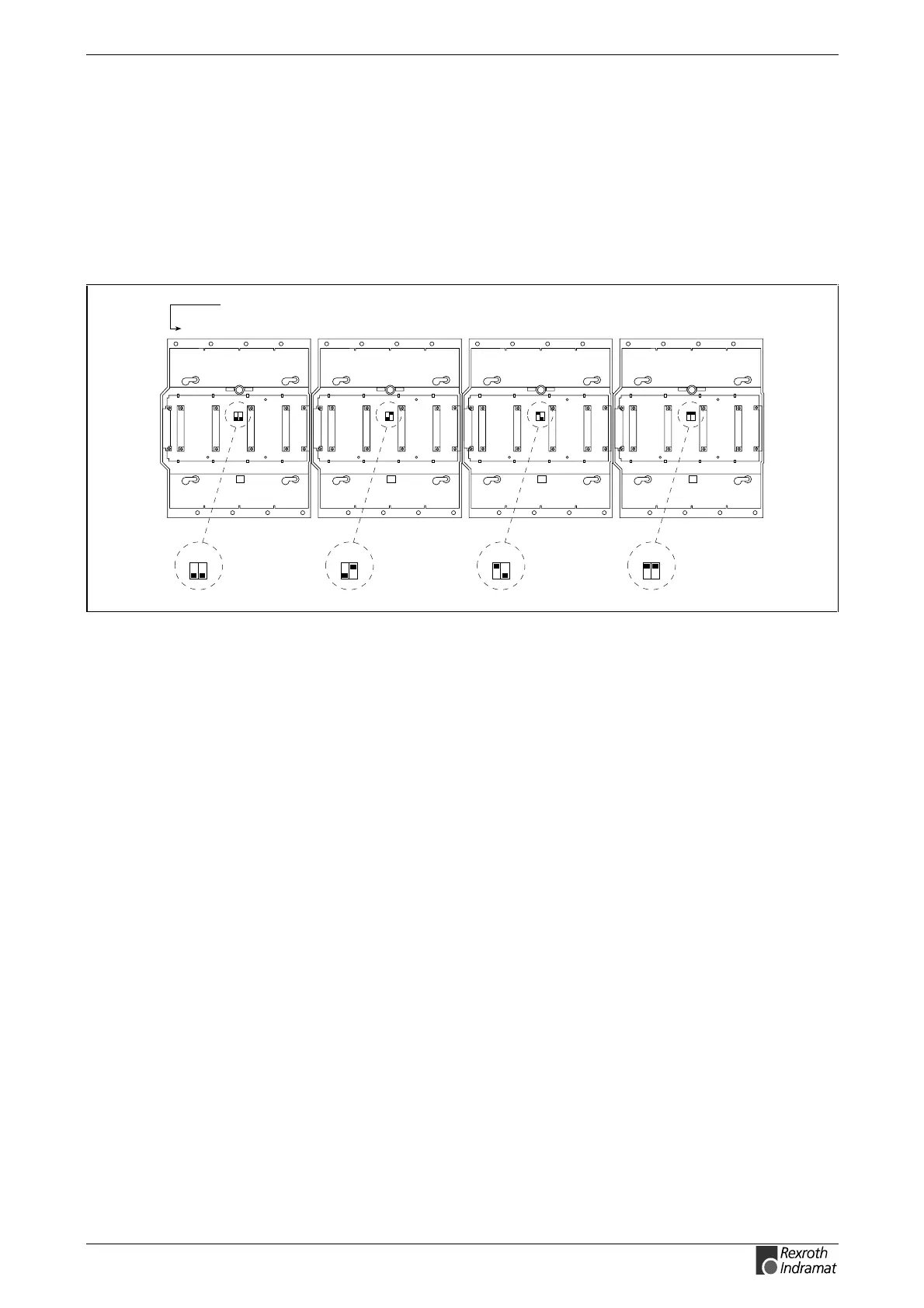

Fig. 4-9: Setting the slot address
