Grounding
Grounding the controller and screening the electronic components
requires a grounding cable of at least 6mm² to be laid between the
grounding stud of the controller to the central grounding point of the
machine. The other devices of the machine must be grounded in a star-
shaped configuration (see Fig. 4-8). The power supply must be grounded
in the same way.
PPC-R
MTS-R
I/O I/O
PPC-R
I/O I/O I/O
Drive Drive Drive
Central
grounding point
of the machine
Machine op.
terminal
Visualization
Devices MUST be connected
to the earthing bolt!
PPC-R_Erdung.FH7

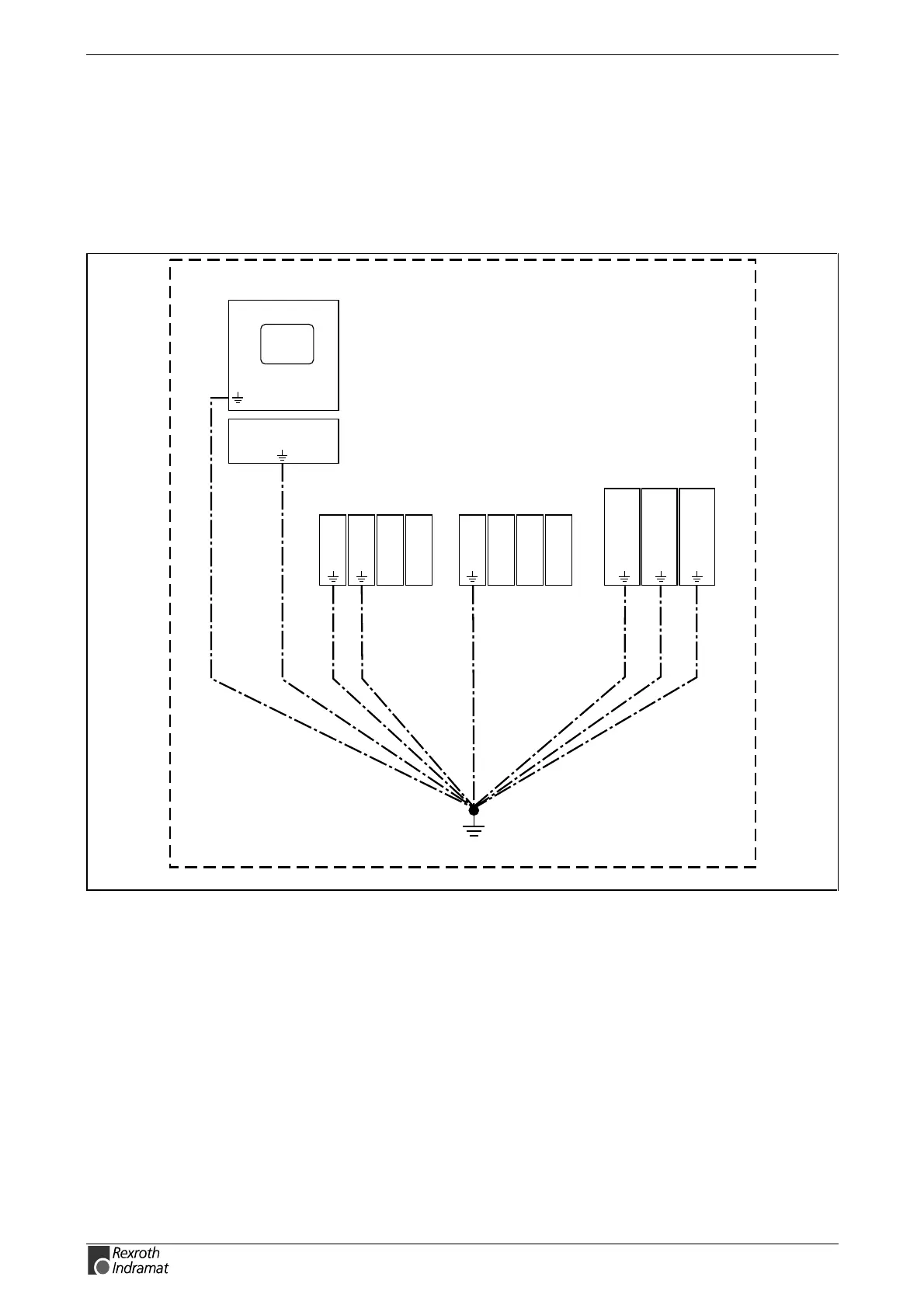

Fig. 4-8: System grounding with PPC-R
