6-10 Determining the Control-Related Plug-In Cards SYNAX200
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
Technical Data
External Measuring System
Output voltage X1/12: DC +5 V (±5%)
max. output load X1/12: 150 mA
Approximately sinusoidal signals
Signal voltage: A, B, R 1 V
SS
max. frequency for measuring system signals: A, B 400 kHz
max. frequency for reference signal: R 15 kHz
X1
voltage signal: A+, B+, R+
voltage signal: A-, B-, R-
Ap5243f1.fh7
DGA01.2
5, 8, 3
6, 1, 4
-
+
121 R
X1

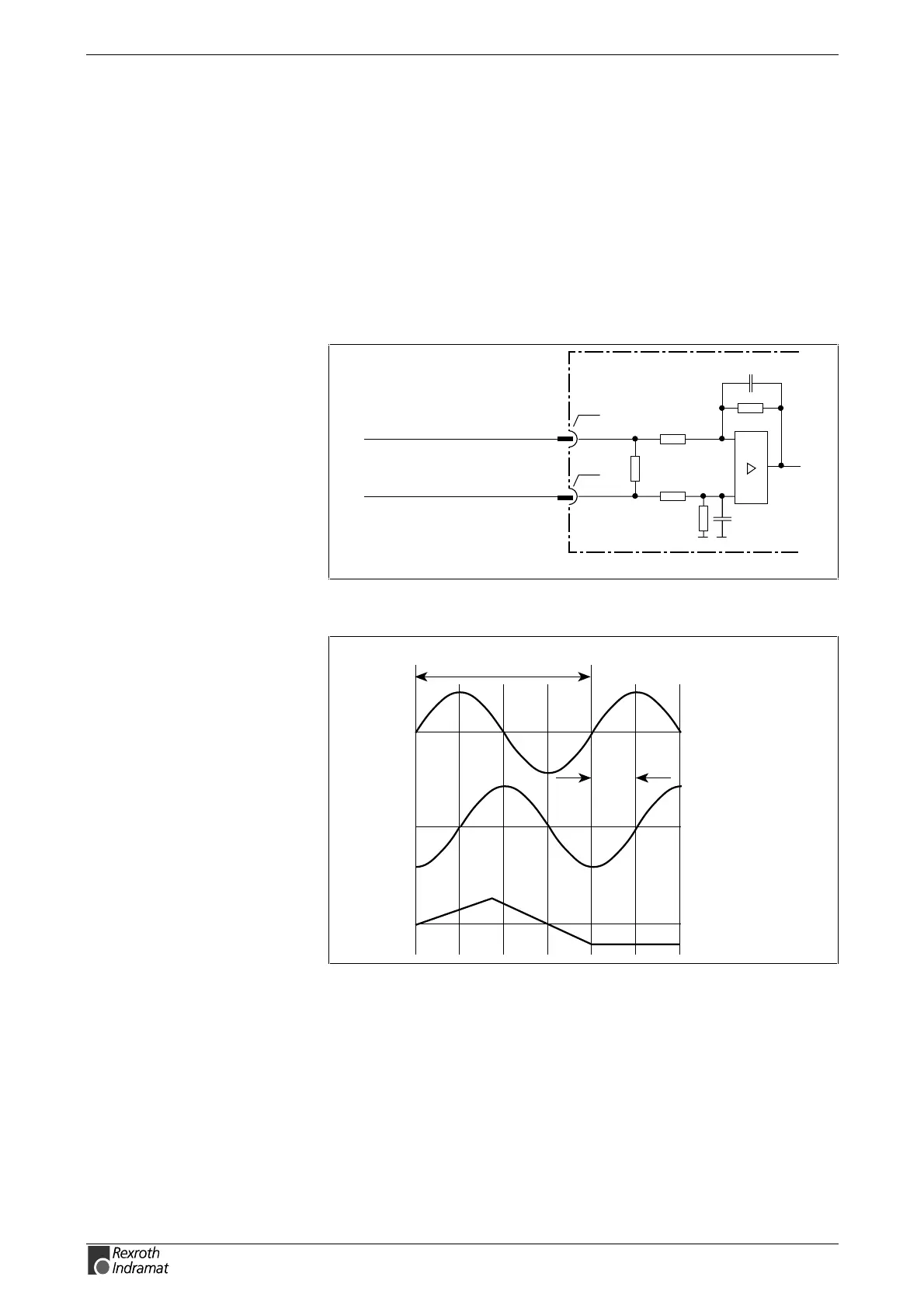

Fig. 6-18: Signal input circuit
Sv5116f1.fh7
Signal period
360° el.
90° el.
0
0
0
A
B
R
Fig. 6-19: Block diagram of the signal paths
Supply voltage for external
measuring system
Signal form
Voltage signals
Signal-input circuit
Block diagram of the signal
paths
