SYNAX200 PPC Link 9-1
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
9 PPC Link
9.1 General Information
Several PPC motion controls can be combined to create one PPC link
with which the following axes can be assigned to different master axes
This combination of PPC motion controls is accomplished with the help of
PPC plug-in card DAQ. All DAQ boards are connected with a fibre-optics
cable (LWL) ring thereby creating the PPC link.
Communications within the PPC link implements, as does the SYNAX200
ring, a fibre-optics cable ring.
The PPC link can be built on a simple or double LWL ring.
The DAQ board DAQ03 supports not only double but single rings as well.
X54
DAQ03.1R
H6
RUN/ARC
PRIMARY
X53
RX
H11, H12, H17, H18
M S S P
SECONDARY
X70
TX
X52
TX
X71
RX
ARCNET connection
"ARCNET ready"
H18 (P) "error primary ring"
H17 (S) "error secondary ring"
H12 (S) "slave circuit"
H11 (M) "master circuit"
LWL secondary ring
LWL primary ring
DAQ03
SY7PR083.FH7

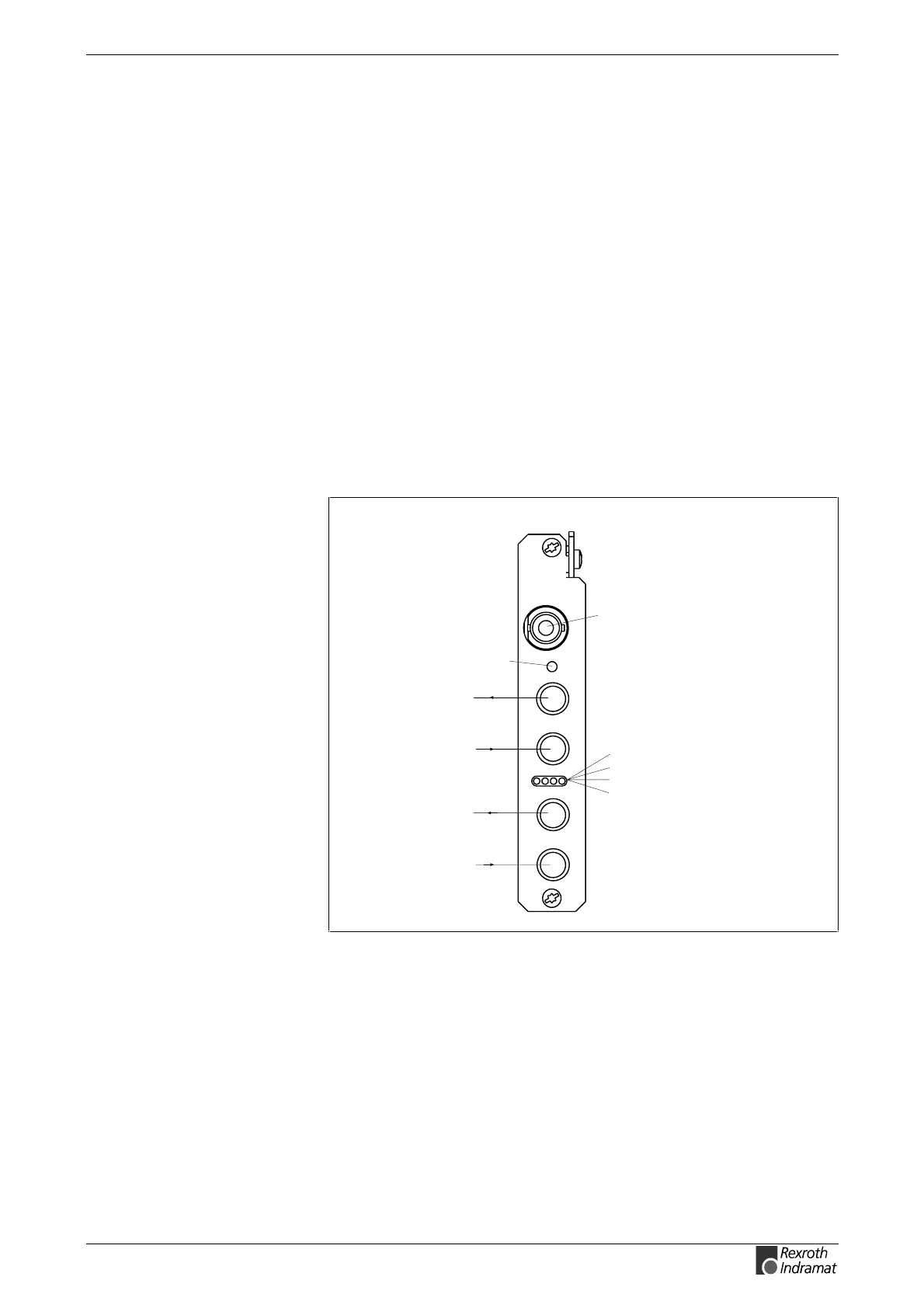

Fig. 9-1: Front view of plug-in card DAQ03
Up to 32 PPC motion controls can be combined to one PPC link.
Each link participant receives a link address. The link address is set via
parameter "PPC link - address" (C-0-0179).
The link address must be within a range 1 ... 32.
Simple and double ring
Plug-in card DAQ
Max. 32 PPCs in a link
Link addresses
