6 Determining the Control-Related Plug-In Cards
6.1 Determining Parallel I/Os
DEA04 or DEA08 parallel I/O cards can be inserted into DKR and HDS
controllers.
Binary signals can be exchanged with this card between the PPC and a
PLC. The voltage level equals 24 volts. The inputs and outputs are opto-
decoupled.
Fifteen inputs (the 16th input monitors the 24 V power source) and 16
outputs are available. The 16th input can be used as a watchdog or a
regular output.
32 inputs, 24 outputs and a watchdog ouput are available.
The signals applied to this I/O are transmitted via the SERCOS fibre-
optics cable link to the PPC.

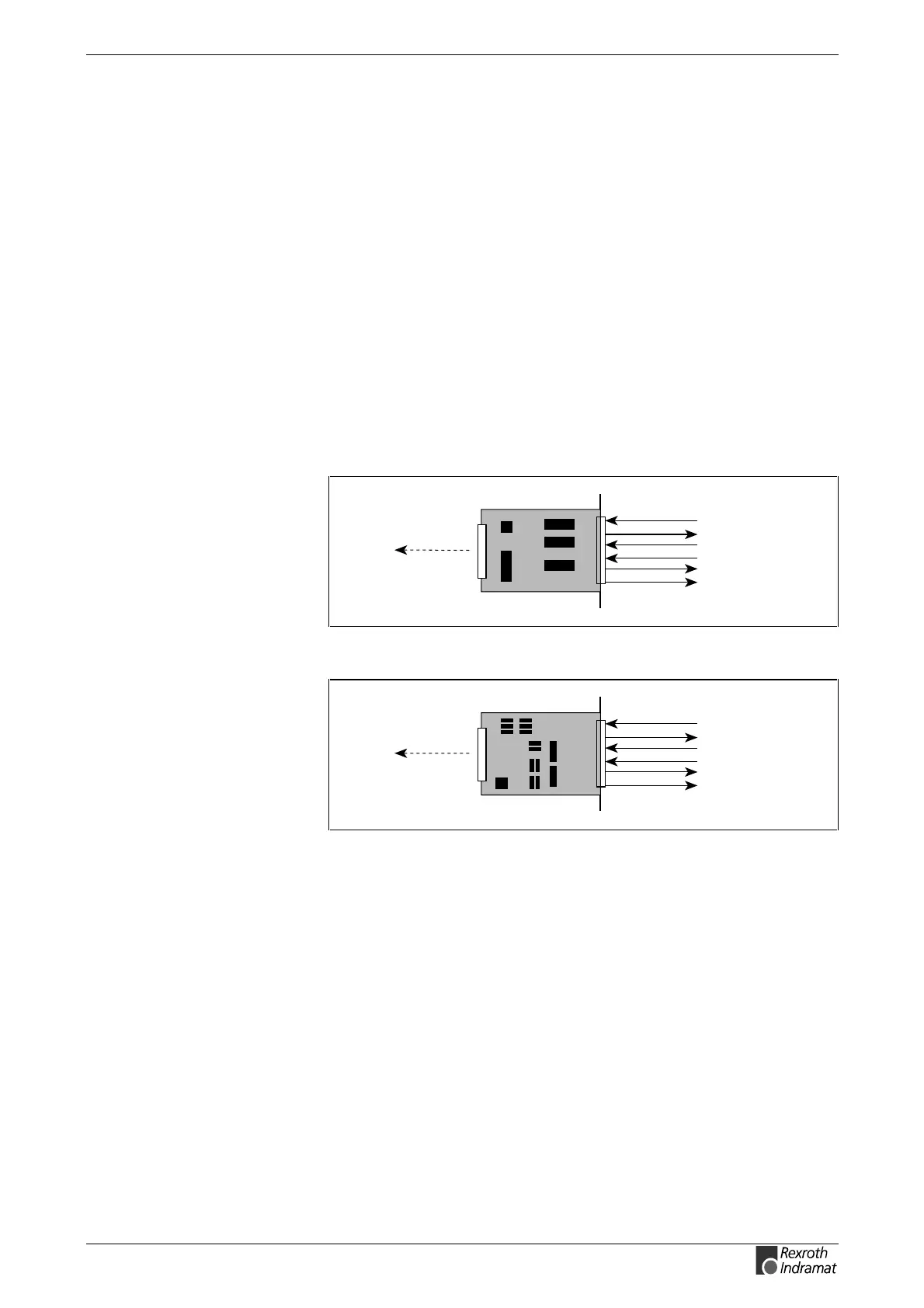

SY6PR016.FH7
15 inputs
16 outputs
DEA04
parallel I/O
in the slot of
a DKR/HDS
24V
Fig. 6-1: Parallel I/O card DEA04
SY6PR056.FH7
32 inputs
24 outputs
DEA 08
parallel I/O
in the slot of
a DKR/HDS
24V
Fig. 6-2: Parallel I/O card DEA08
DEA04
DEA08
