RME02.2-16-AC115 Input Module
Brief Description
AC sources of a maximum rating of 120VAC / 60Hz can directly be
connected to the digital 115VAC input modules. The 16 AC inputs are
arranged in 2 isolated potential groups.
Mounting Dimensions
41,3
192
214
57,54,3
12
23,5 ca.36
total installation depth incl. base rack ca. 150
RME02.2-16-
1
2
3
4
5
6
7
8
9
CO
CO
1
X
X
1
2
3
4
5
6
7
8
9
CO
CO
1
I*.1.0
I*.0.0
I*.1.1
I*.1.2
I*.1.3
I*.1.4
I*.1.5
I*.1.6
I*.1.7
I*.0.1
I*.0.2
I*.0.3
I*.0.4
I*.0.5
I*.0.6
I*.0.7
RME02.2-16-AC115-Maß.FH7

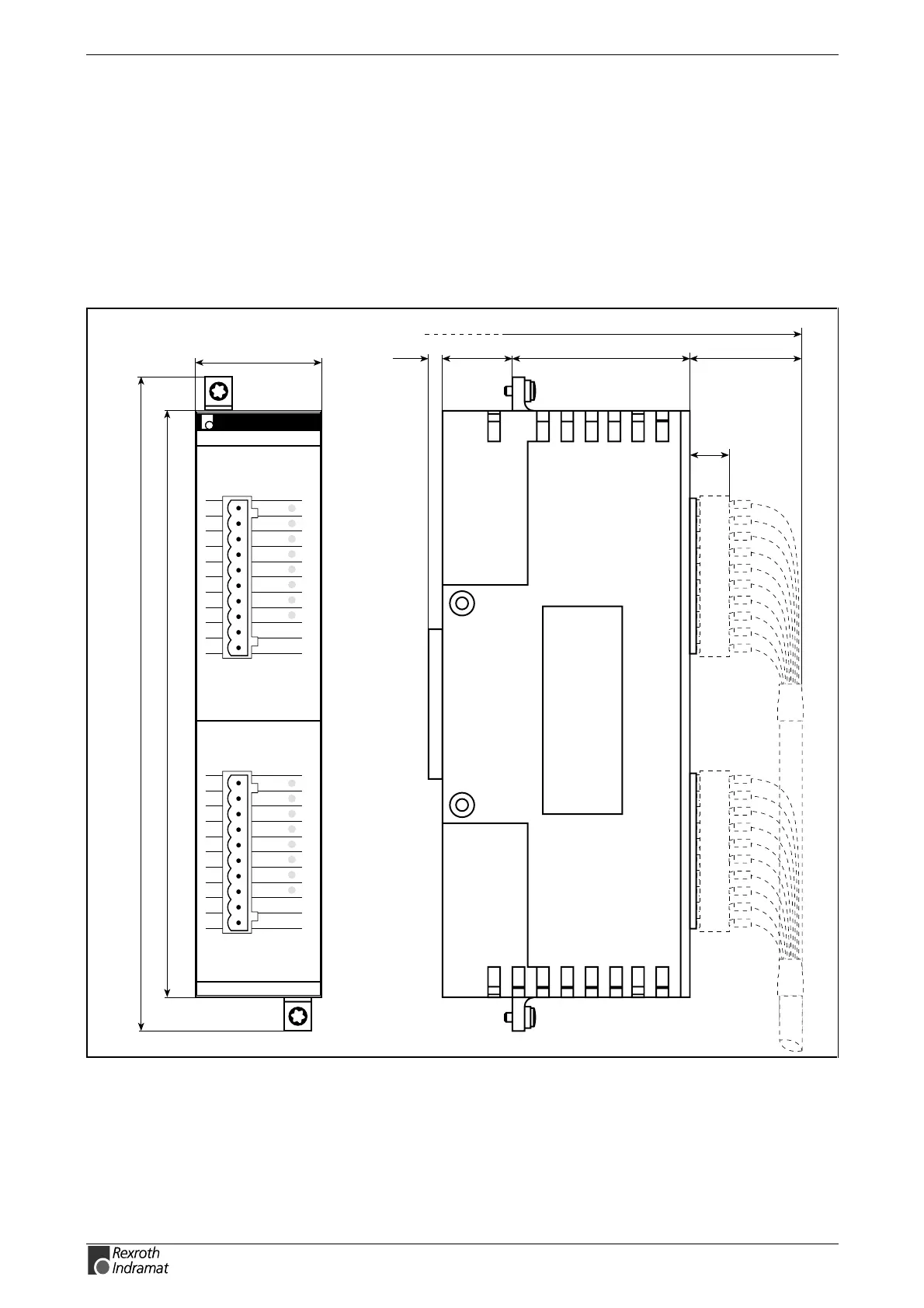

Fig. 11-14: Mounting dimensions RME02.2-16-AC115
