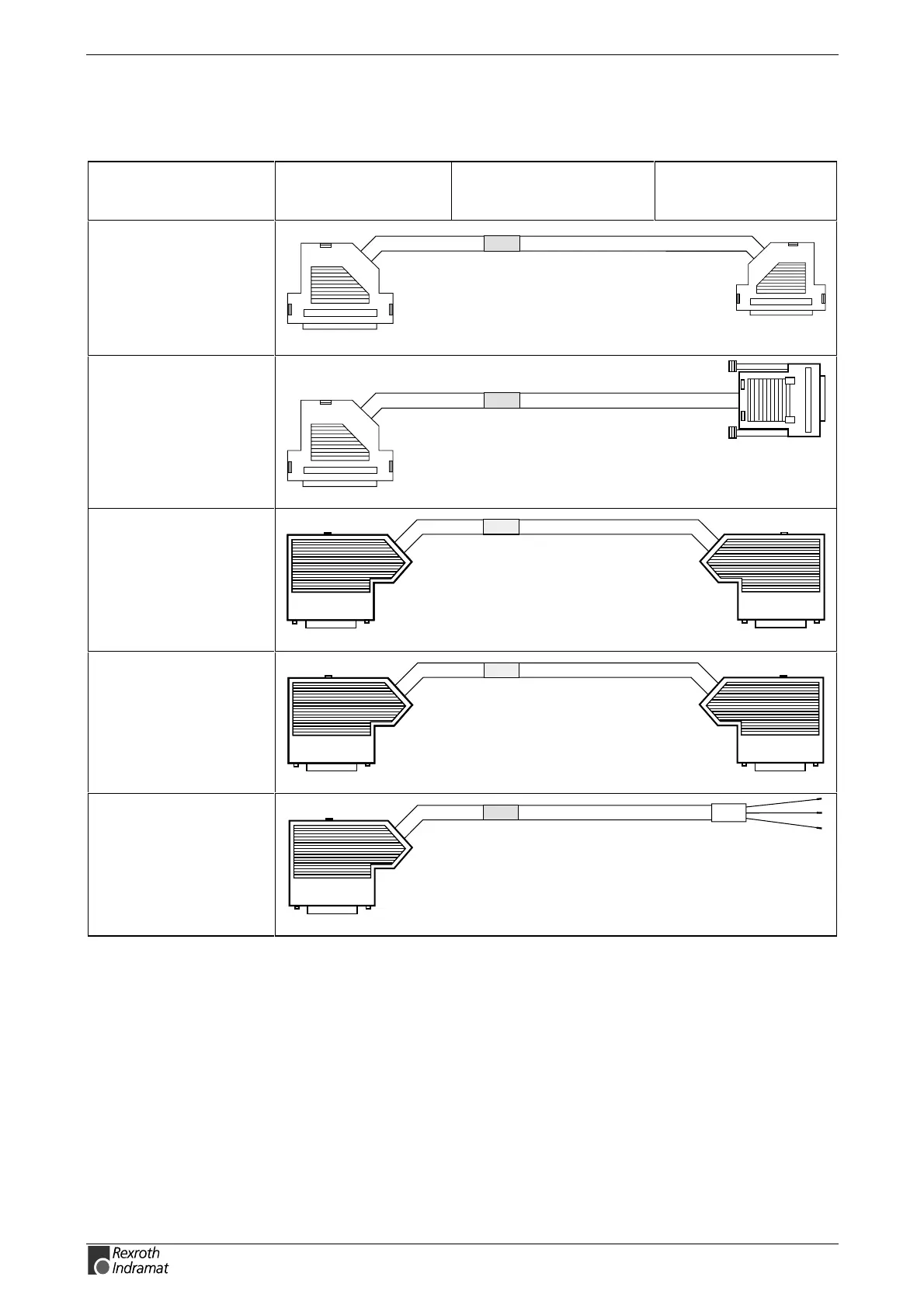

List of Connectors and Ready-Made Cable
Order designation for
ready-made cable
Mating connector of
the unit
INDRAMAT cable Cable end
IKB0005
Part no.: 278 141, 2m
Part no.: 278 144, 5m
Part no.: 278 142, 10m
Part no.: 278 143, 15m
(RS232, max. 15m)
INS526
INS439
INK572
15pin/pins
9pin/bushing
IKB0012/000,0
Part no.: 281 715
(RS232, max. 15m)
INS439
INS588
INK572
9pin/bushing
15pin/pins
IKB0015/000,0
Part no.: 282 870
(RS422, max. 400m)
INK234
INS645 INS645
15pin/pins 15pin/pins
IKB0017/000,0
Part no.: 282 872
(RS485, max. 400m)
INK572
INS619
INS619
15pin/pins 15pin/pins
IKB0019/000,0
Part no.: 282 875
(RS485, max. 400m)
INK572
INS619
ferrules
15pin/pins
