SYNAX200 Appendix 11-17
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
Pin Assignments
Specifications:
- FET - output switch for 24V DC
- output current I
L
= 0.5A per output
- internal current limitation
- short-circuit-proof
- 4 isolated blocks with 8 outputs each
- with internal voltage monitoring of the
externally applied voltage
- power loss Pv ca. 2,5W
- weight ca. 300g
X1
R MA02.1-32-DC024-050
X2 X3 X4
1
2
3
4
5
6
7
8
9
10
+
+
-
Q*.3.0 Q*.2.0 Q*.1.0 Q*.0.0
Q*.3.1 Q*.2.1 Q*.1.1 Q*.0.1
Q*.3.2 Q*.2.2 Q*.1.2 Q*.0.2
Q*.3.3 Q*.2.3 Q*.1.3 Q*.0.3
Q*.3.4 Q*.2.4 Q*.1.4 Q*.0.4
Q*.3.5 Q*.2.5 Q*.1.5 Q*.0.5
Q*.3.6 Q*.2.6 Q*.1.6 Q*.0.6
Q*.3.7 Q*.2.7 Q*.1.7 Q*.0.7
+U
L
= 24 VDC
0V
L
external
power
supply
R MA02.2-32-DC024-050_Anschl.FH7

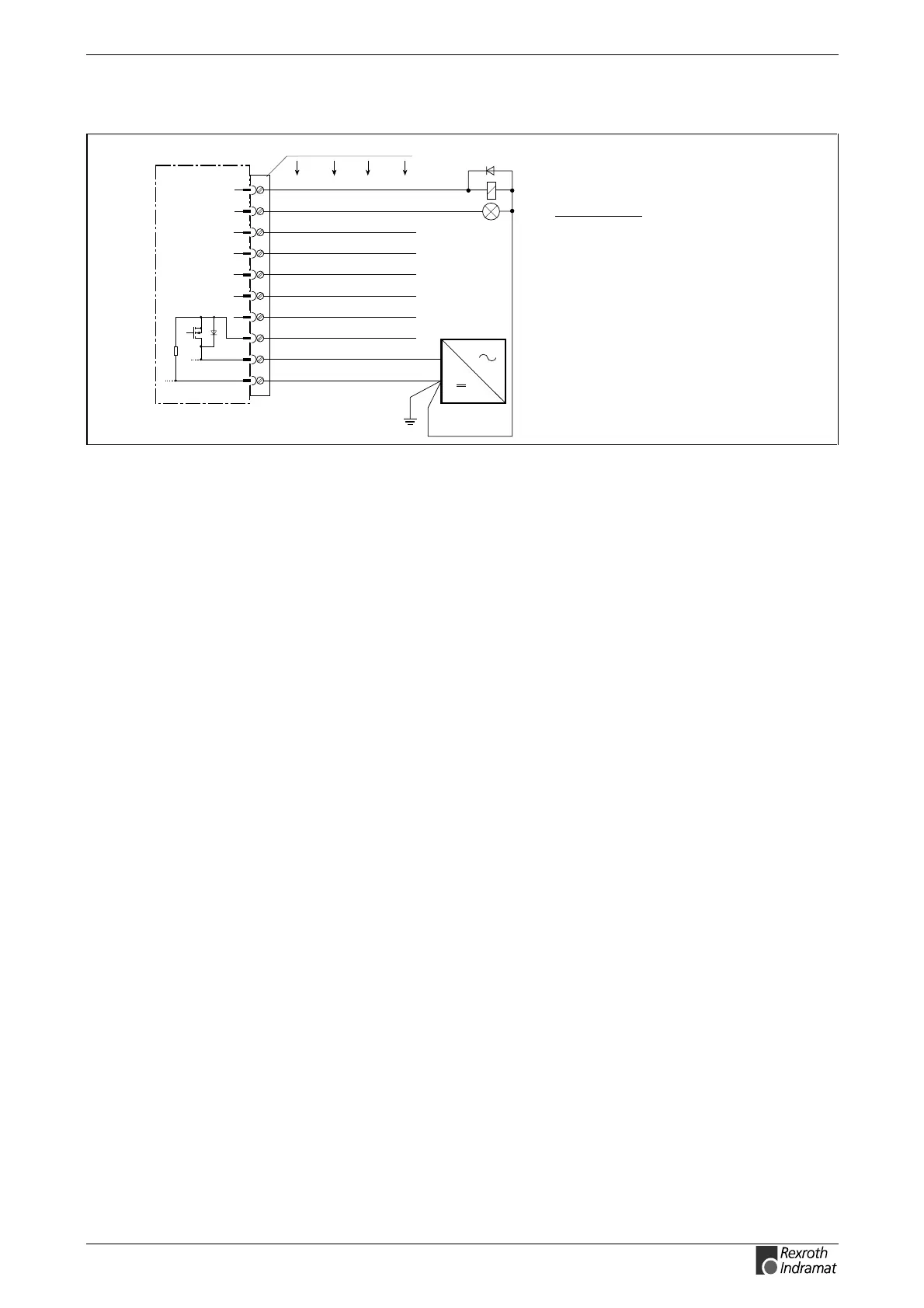

Fig. 11-19: Wiring diagram RMA02.2-32-DC024-050
