Pin Assignments
Specifications:
- Switching voltage:
U
A
= 12 ... 275Vrms AC / 10 ... 440Hz
- Switching current:
I
A
max = 2A
I
A
min = 5mA
- Power loss Pv ca. 12,8W
- Weight ca. 600g
1
R MA02.2-16-AC230-200
UAC
Q*.1.0
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
COM
UAC
COM
Q*.1.1
Q*.1.2
Q*.1.3
Q*.1.4
Q*.1.5
Q*.1.6
Q*.1.7
Q*.0.0
Q*.0.1
Q*.0.2
Q*.0.3
Q*.0.4
Q*.0.5
Q*.0.6
Q*.0.7
R MA02.2-16-AC230-200_Anschl.FH7
X1
X2
UUUUUUUU

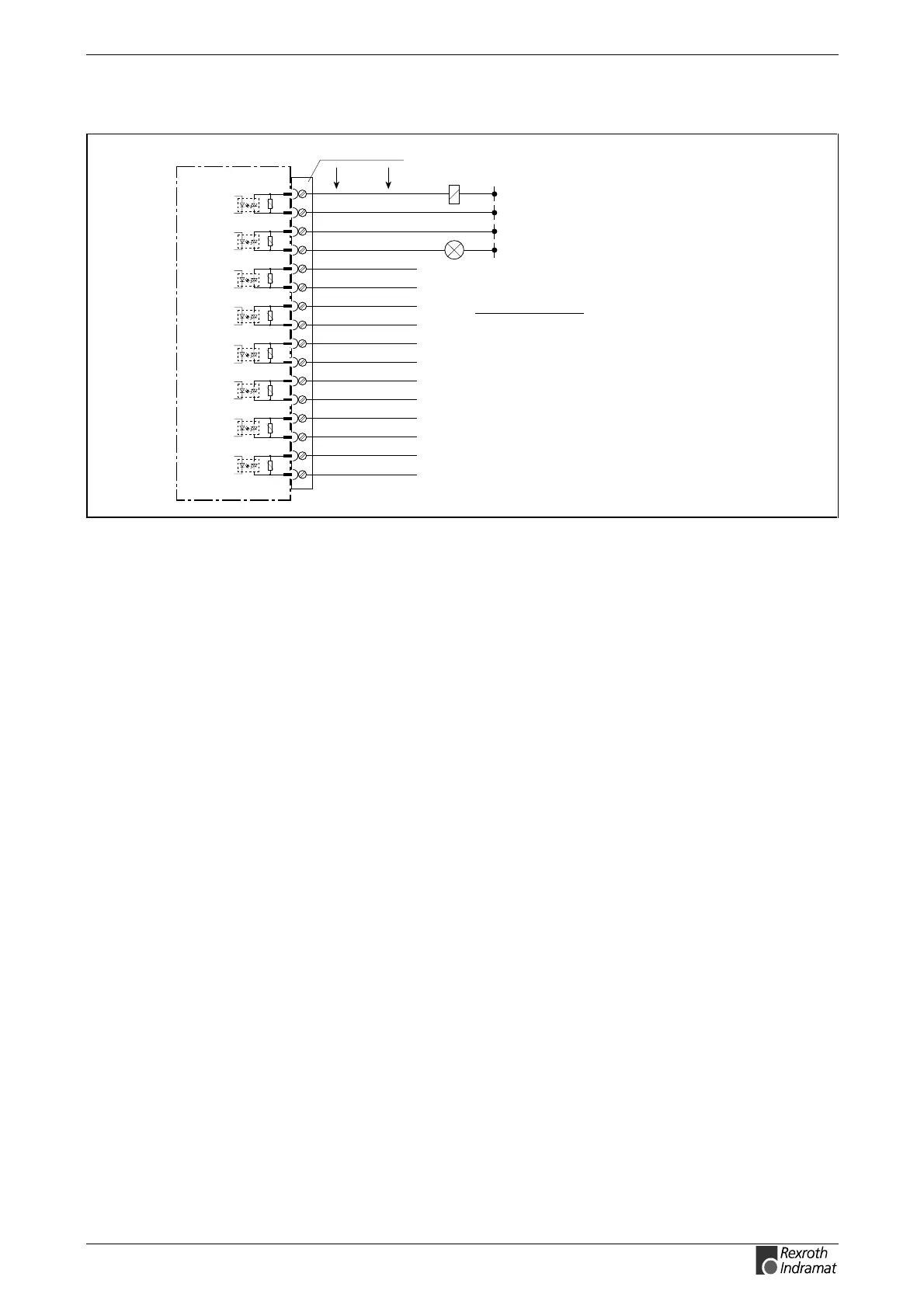

Fig. 11-21: Wiring diagram RMA02.2-16-AC230-200
