SYNAX200 Determining Basic Drive Configuration 5-7
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
Usable Motors DIAX04:
• MHD
• MKD
• MKE
• 2AD with HSF
• ADF with HSF
Basic Drive Configuration HS32 (DIAX04):
MHD
MKE
MKD
2AD
ADF
Read and follow
Instructions for Electrical Drives"
manual,
DOK-GENERL-DRIVE******-SVS...
DANG
High oltage.
Danger of electrical shock.
Donot touch electrical connections
fo
5 minutes after switching
IKS 4374
reference switch
scale input
LWL
U1 (DSS)
U2 (DLF)
IKS 4383
SY7PR089.FH7
external encoder
with sine output
e.g., Heidenhain
ROD 481
ERN 180
ERN 680
RON 285

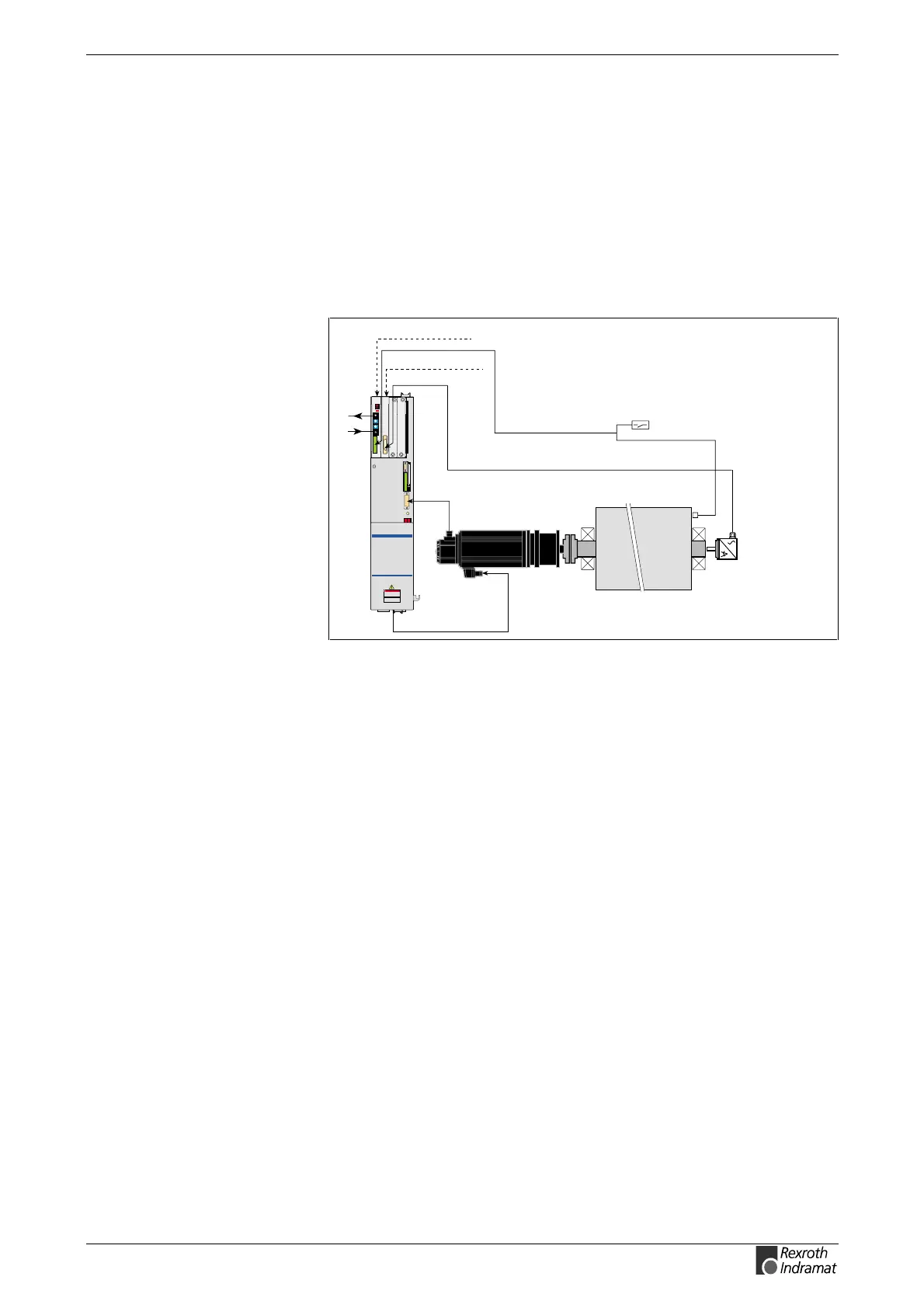

Fig. 5-8: Drive with step-down gear and direct incremental position detection
MHD, MKD, MKE,
2AD with HSF, ADF with HSF:
