SYNAX200 Determining Basic Drive Configuration 5-9
DOK-SYNAX*-SY*-07VRS**-PR01-EN-P
Usable Motors DIAX04:
• MHD
• MKD
• MKE
• 2AD with HSF
• ADF with HSF
Basic Drive Configuration HS45 (DIAX04):
MHD
MKD
MKE
2AD
ADF
Read and follow
Instructions for Electrical Drives"
manual,
DOK-GENERL-DRIVE******-SVS...
DANG
High oltage.
Danger of electrical shock.
Donot touch electrical connections
fo
5 minutes after switching
IKS 4374
LWL
U1 (DSS)
U2 (DAG)
IKS 4142
EnDat
SY7PR090.FH7
EnDat encoder
e.g., Heidenhain

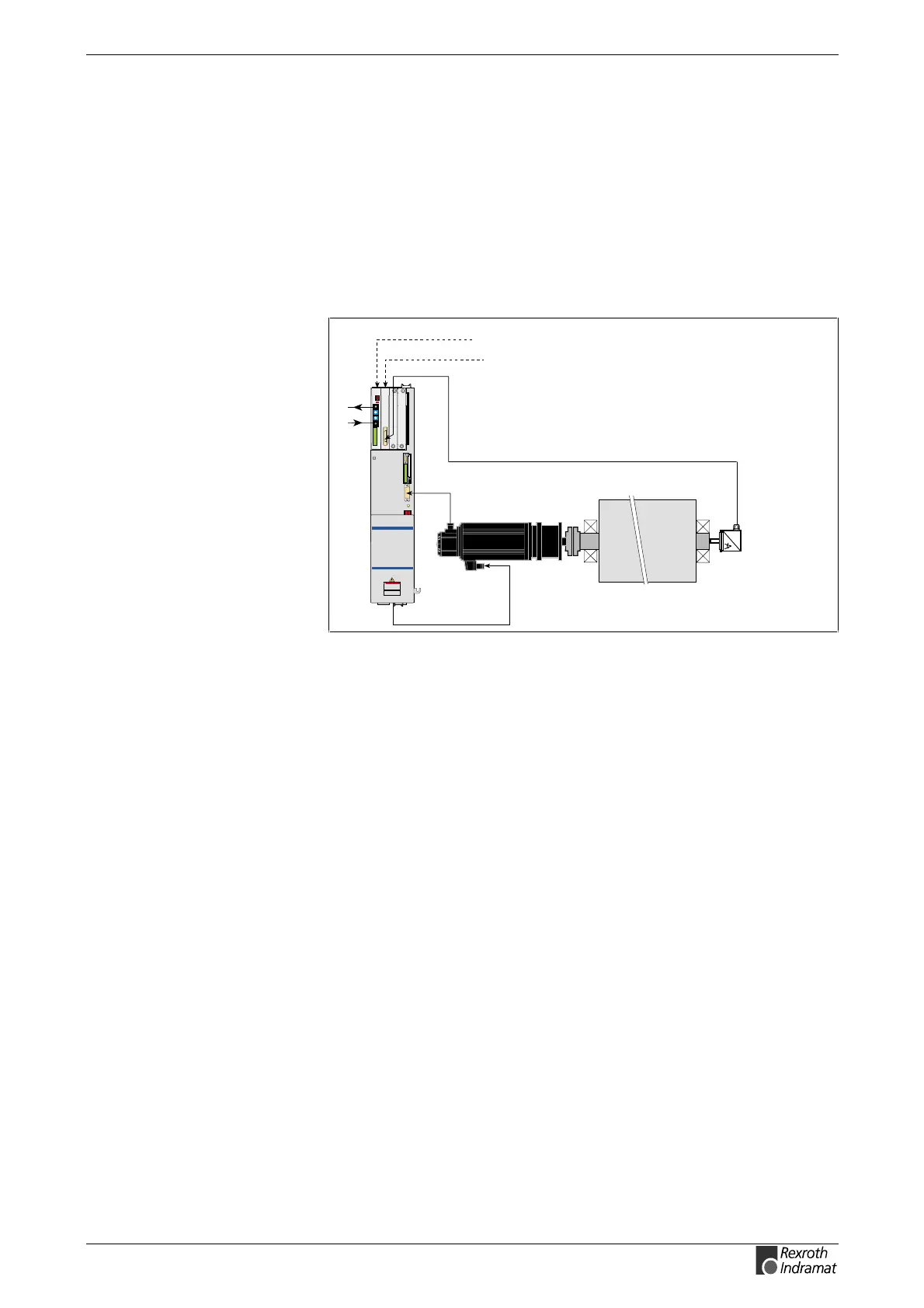

Fig. 5-10: Drive with step-down gear and direct absolute position detection
MHD, MKD, MKE
2AD with HSF, ADF with HSF:
