MFP CONTROLLER OPTIONS
B132/B200 1-144 SM

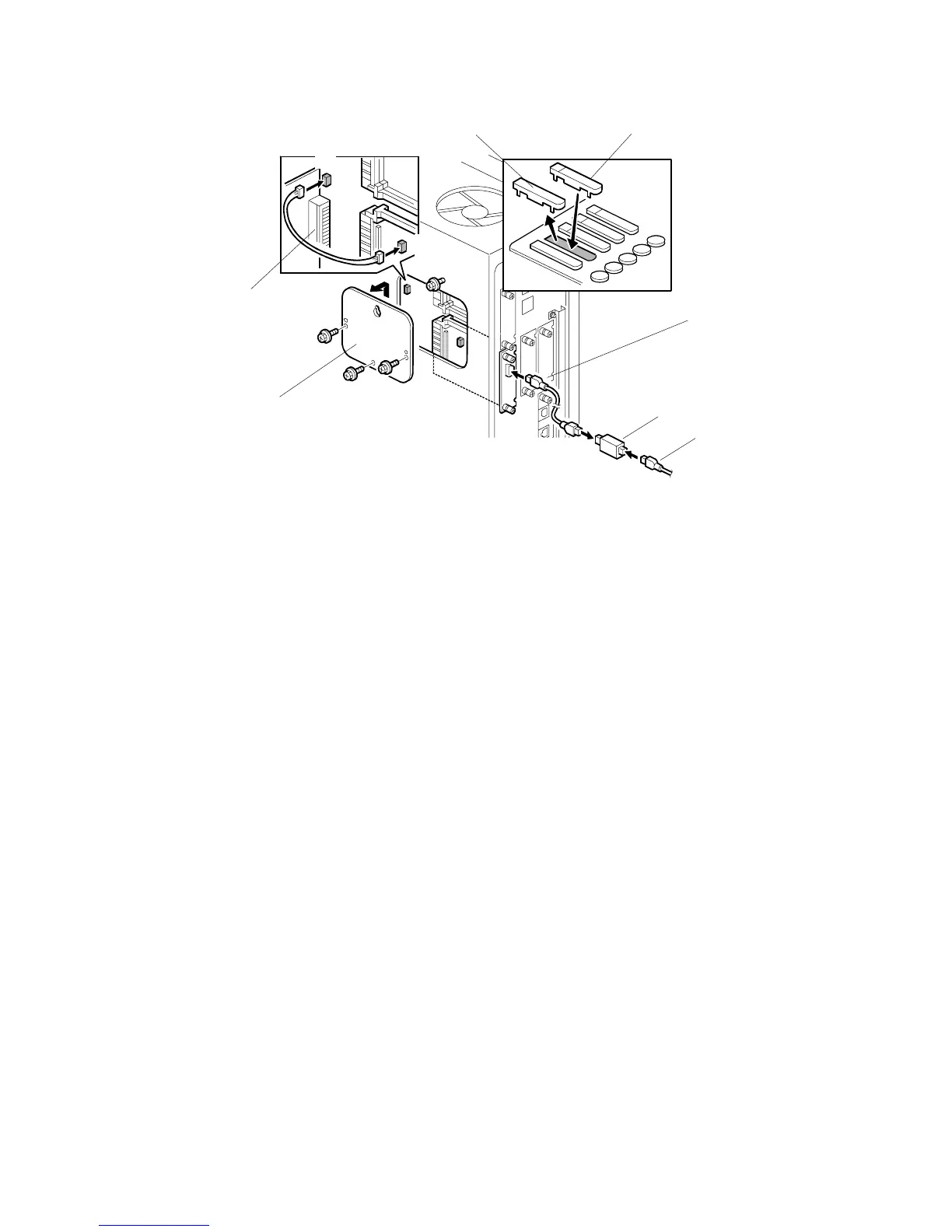

5. Remove the controller box cover [C] ( x3).
6. Connect the power repeater cable [B] to:
$ CN594
& CN4
7. Reattach the controller box cover and rear upper cover.
8. Repeat Steps 1 to 7 to install the connection kit on the second machine.
9. Insert the end of the interface cable [C] to the connection PCB.
10. If additional cable is required, connect the cables [E] with repeater hubs [D].
11. On the operation panel of each machine, remove the second cover [F] from the
bottom ("Printer").
12. Install the appropriate key on each machine.
Attach the "Printer/Other Function" key [G] (or its equivalent symbol for EU) if
the printer/scanner option is installed.
-or-
Attach the "Other Function" key [G] (or its equivalent symbol for EU) if the
printer/scanner option is not installed.
13. Attach the other end of the connection cable to the connection PCB installed in
the other machine.
B737I112A.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
$
&
To Next Page
