IMAGE TRANSFER AND PAPER TRANSFER
B132/B200 6-90 SM
6.12 IMAGE TRANSFER AND PAPER TRANSFER
6.12.1 OVERVIEW

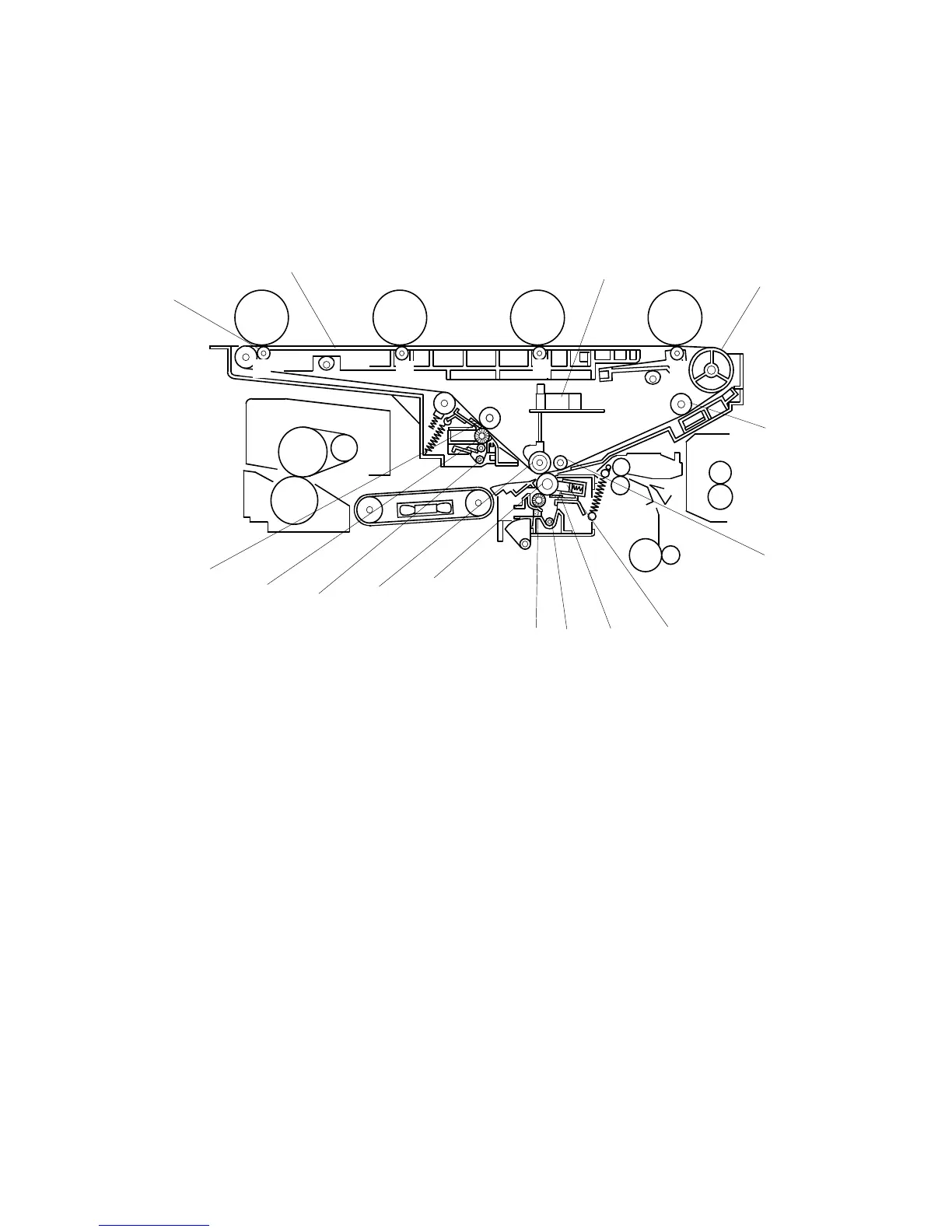

1. Image Transfer Rollers
(! Y," C,' M,( K)
2. ITB
3. Transfer Power Pack
4. ITB Drive Roller
5. ID/MUSIC Sensor Roller
6. Belt Pressure Roller
7. Lubricant Bar
8. PTR Cleaning Blade
9. PTR Waste Toner Collection Coil
10. Paper Transfer Roller Cleaning Brush
11. PTR (Paper Transfer Roller)
12. ITB Bias Roller
13. ITB Waste Toner Collection Coil
14. ITB Cleaning Brush Roller
15. ITB Cleaning Blade
