Ricoh B132 - Color Registration Error Adjustment; Color Registration Error Correction

SPECIAL PROCEDURES
SM 4-9 B132/B200
4.2.2 COLOR REGISTRATION ERROR ADJUSTMENT
Color Registration Error Correction
1. Start SP 2109 002 and select pattern 1 (1-dot line), then push the “OK” button.
2. Push the “Copy Window” button. Then select A3/DLT paper, and push the
“Start” button to print the pattern.
NOTE: Make sure that “Full Color Mode” is selected before you push the Start
button.

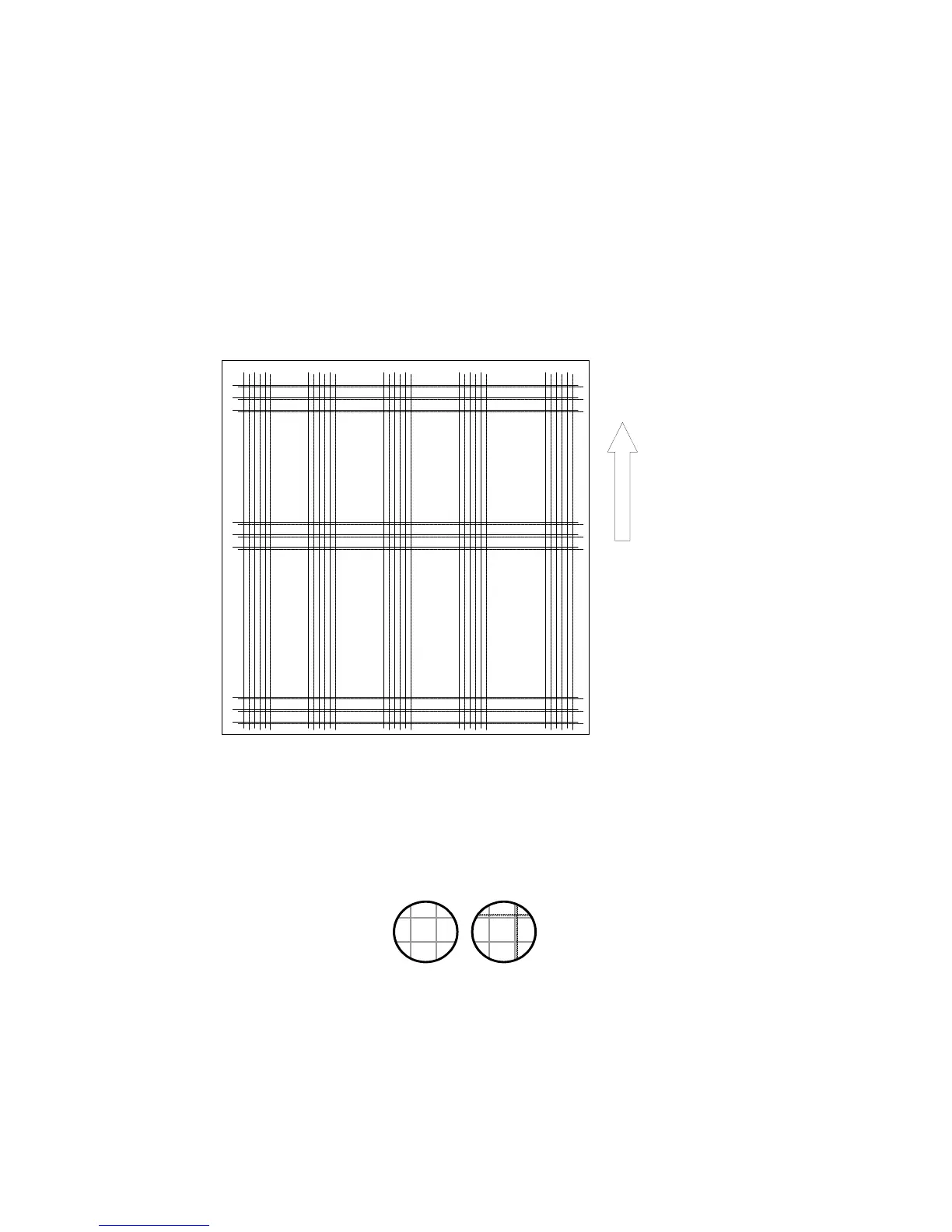

In the example above, the dotted lines are magenta, cyan, or yellow, and the
solid lines are black.
3. Lay the test pattern flat, and use a lupe to examine the grid patterns.
B132R930.WMF
GNG
B132R942.WMF
Pa
p
er Feed Direction
