Ricoh B132 - Interval, Original Width, Skew Correction Separation Sensors

ARDF
SM 3-157 B132/B200
Replacement &
Adjustment

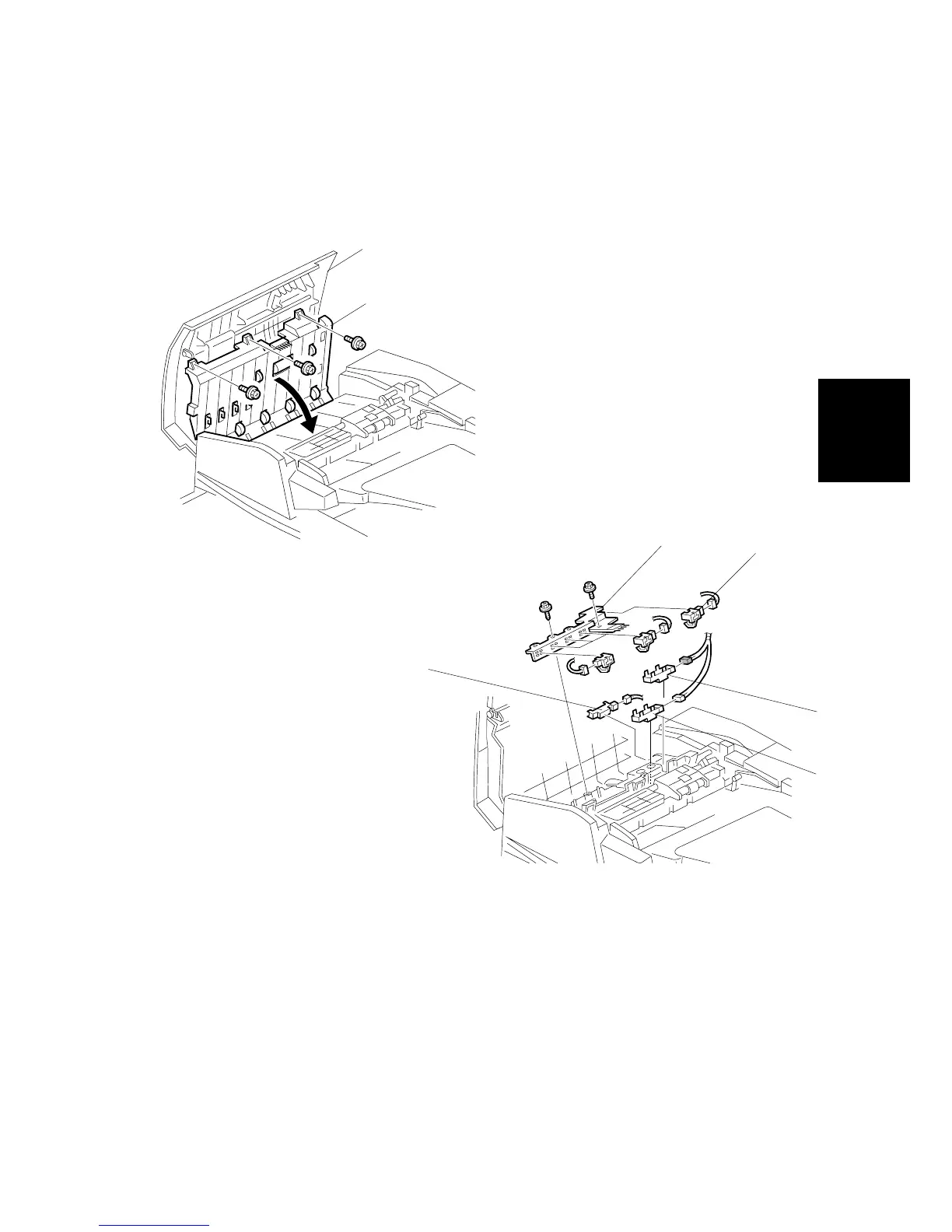

3.18.5 INTERVAL, ORIGINAL WIDTH, SKEW CORRECTION
SEPARATION SENSORS
[A]: Open the feed cover.
[B]: Guide plate ( x 3).
[C]: Width sensor bracket ( x 2)
[D]: Original width sensors (x 5)
[E]: Interval sensor ( x 1)
[F]: Skew correction sensor ( x 1)
[G]: Separation sensor ( x 1)
B132R110.WMF
B132R111.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
