Ricoh B132 - Pcu Cleaning Unit

PCU
B132/B200 3-54 SM
3.5.5 PCU CLEANING UNIT
Remove:
• PCU (!3.2.7)
• Charge roller unit (!3.5.3)
• Drum (!3.5.4)

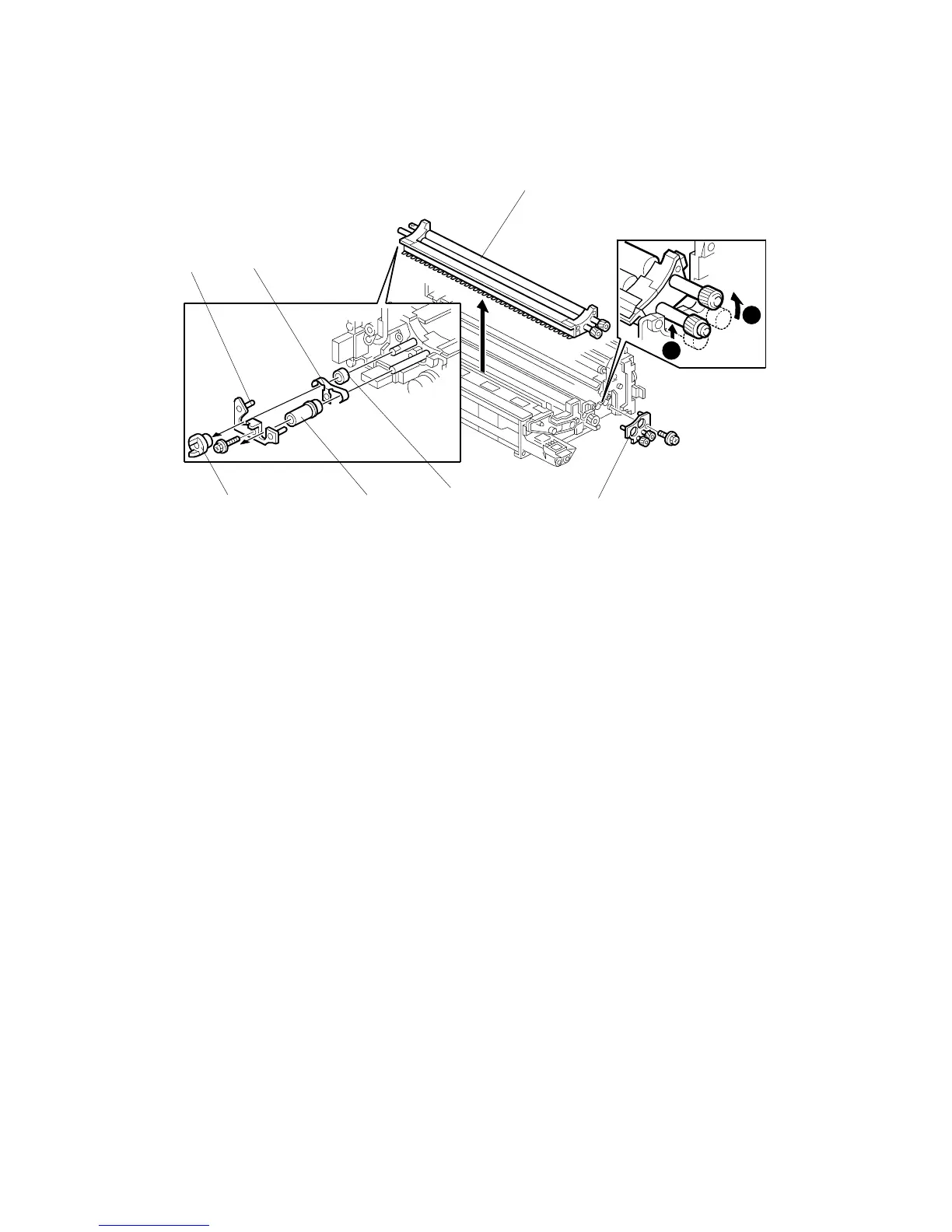

[A]: PCU Coupler
[B]: Rear bracket ( x1)
[C]: Long sleeve
[D]: Leaf spring
[E]: Short sleeve
[F]: Bracket and 2 gears ( x1)
[G]: Cleaning unit
• When you remove the cleaning unit, the mylar can catch on the PCU frame
and will scatter toner. To prevent this, rotate " then lift #
• The cleaning unit contains these PM parts: lubricant brush, toner brush.
2
1
B132R208.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
