Ricoh B132 - Duplex Transport Motor

DUPLEX UNIT
SM 3-103 B132/B200
Replacement &
Adjustment
3.10.2 DUPLEX TRANSPORT MOTOR
• Pull out the duplex unit.
• Release the lower guide plate with knob F.
Remove:
• Duplex inner cover

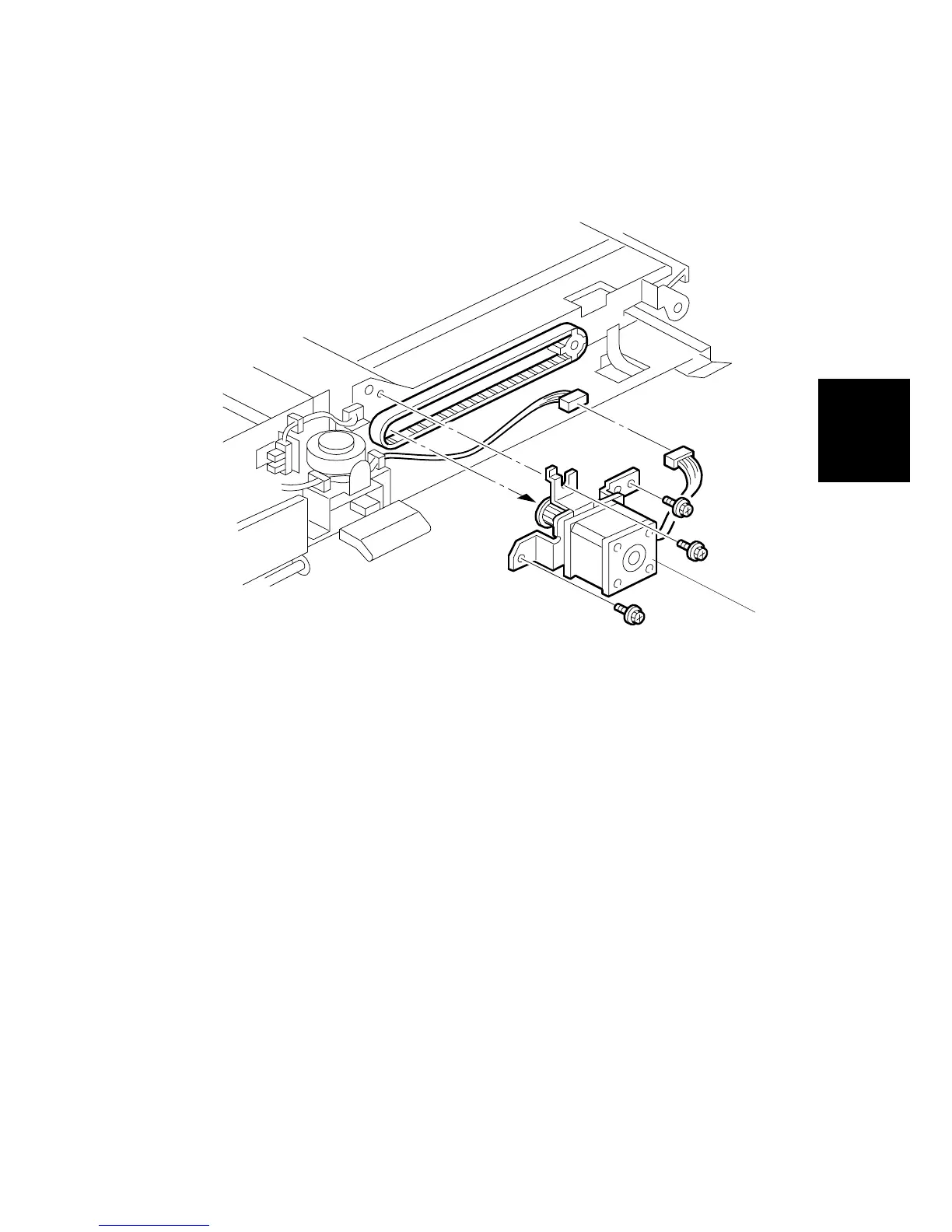

[A]: Duplex transport motor ( x3,  x1, Timing belt x 1)
B132R506.WMF
[A]
