Ricoh B132 - Reassembly of the Image ITB Unit and Belt Cleaning Unit

IMAGE TRANSFER UNIT
SM 3-77 B132/B200
Replacement &
Adjustment

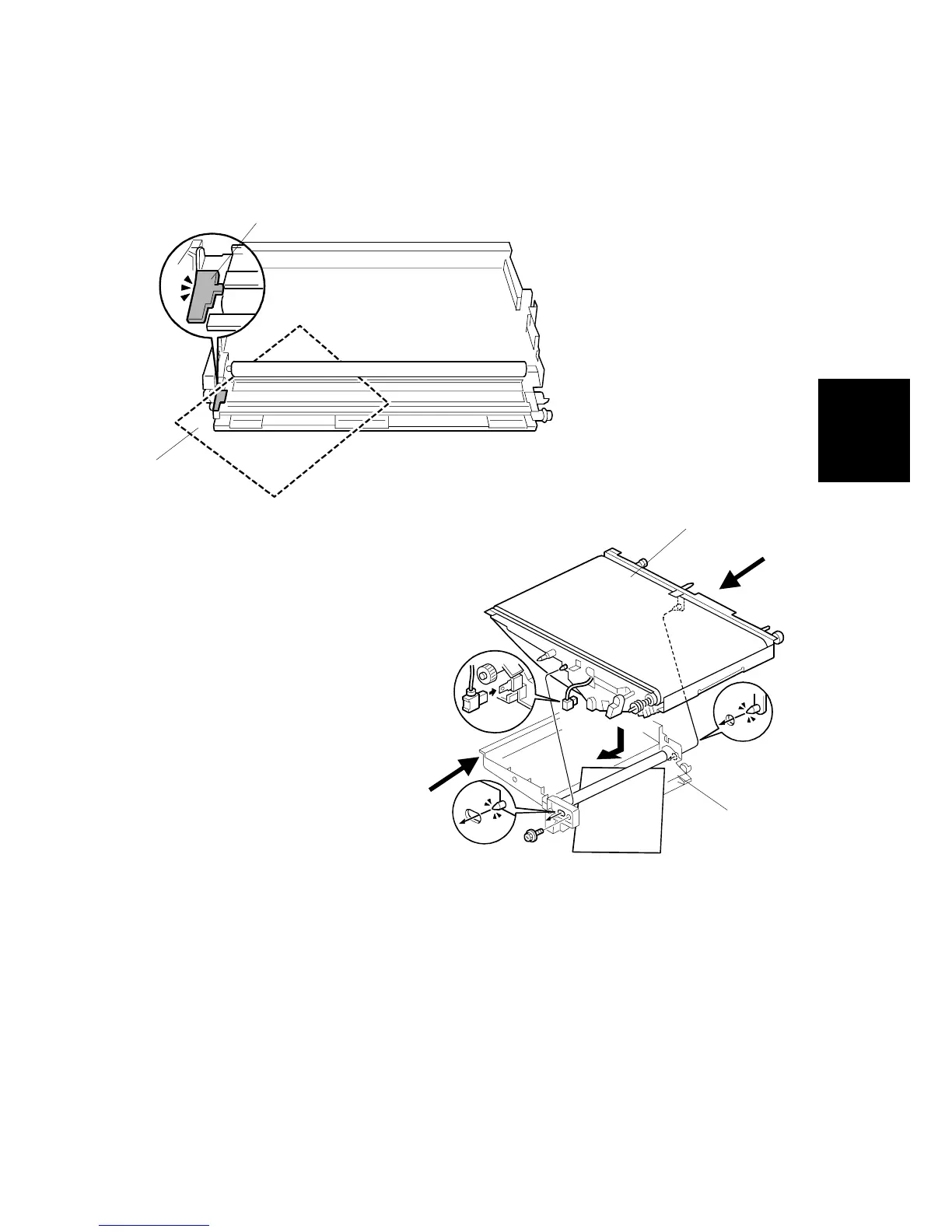

Reassembly of the Image ITB Unit and Belt Cleaning Unit
1. Insert one sheet of A4/LT paper
[A] at the corner as shown.
NOTE: The paper protects the
corner seal [B] of the belt
cleaning unit.
2. Lower the belt unit [C] onto the
cleaning unit [D].
3. Push the belt unit " and belt
cleaning unit # together.
4. Connect the belt unit and belt
cleaning unit ( x1,  x1).
B132R315.WMF
B132R316.WMF
[B]
[A]
[C]
[D]
"
&
