SPECIAL PROCEDURES
B132/B200 4-12 SM
Overall Check
1. After you do the color registration error and color skew corrections, do a forced
MUSIC again, with SP 2111 001.
2. Do SP 2109 002 and print pattern 1 (1-dot line) on A3/DLT paper again. Check
the skew and color registration. If they are still not acceptable, do the forced
MUSIC again.
3. Do SP 2181-030 to make sure that the forced MUSIC was done correctly. If the
result is ‘1’, then each color was aligned correctly.
If "1" is not shown, then please see section 4.2.1.
Color Registration at the Left and Right Folds of the Test Pattern
Do this procedure after you complete “Color Registration Error Correction” and
“Color Skew Error Correction”.
1. Do SP 2109 002 and print pattern 1 (1-dot line) on A3/DLT paper.
NOTE: Make sure that “Full Color Mode” is selected before you push the Start
button.

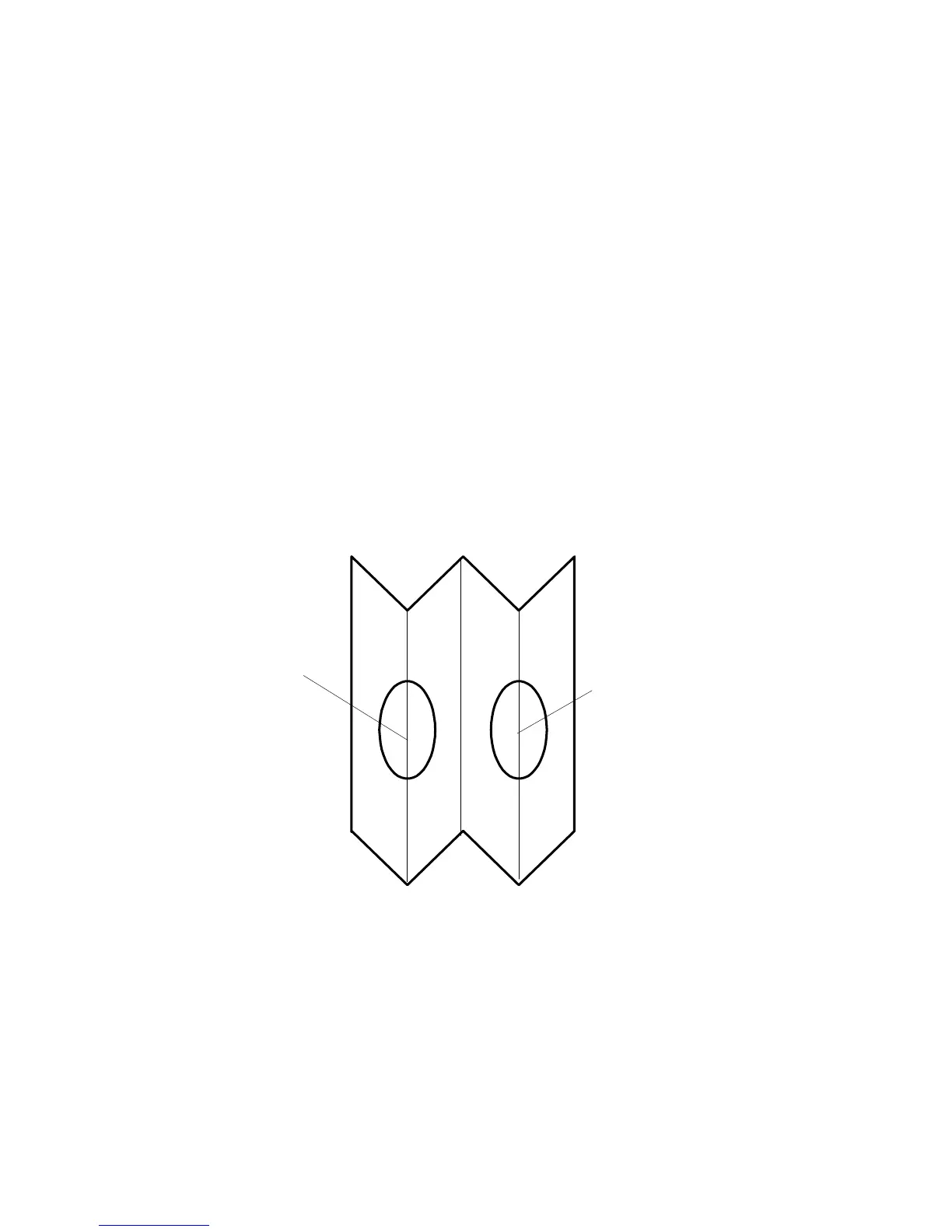

2. Fold the test pattern lengthways in half, then fold it in half again as shown
above.
3. Lay the test pattern flat, and use a lupe to examine the grid patterns at the first
crease [A] and third crease [B].
B132R921.WMF
Left
Right
Leading Edge
[A]
[B]
To Next Page
