Ricoh D129 - Installation Procedure

HDD Installation (D640-11)
SM 2-77 D129/D130
Installation

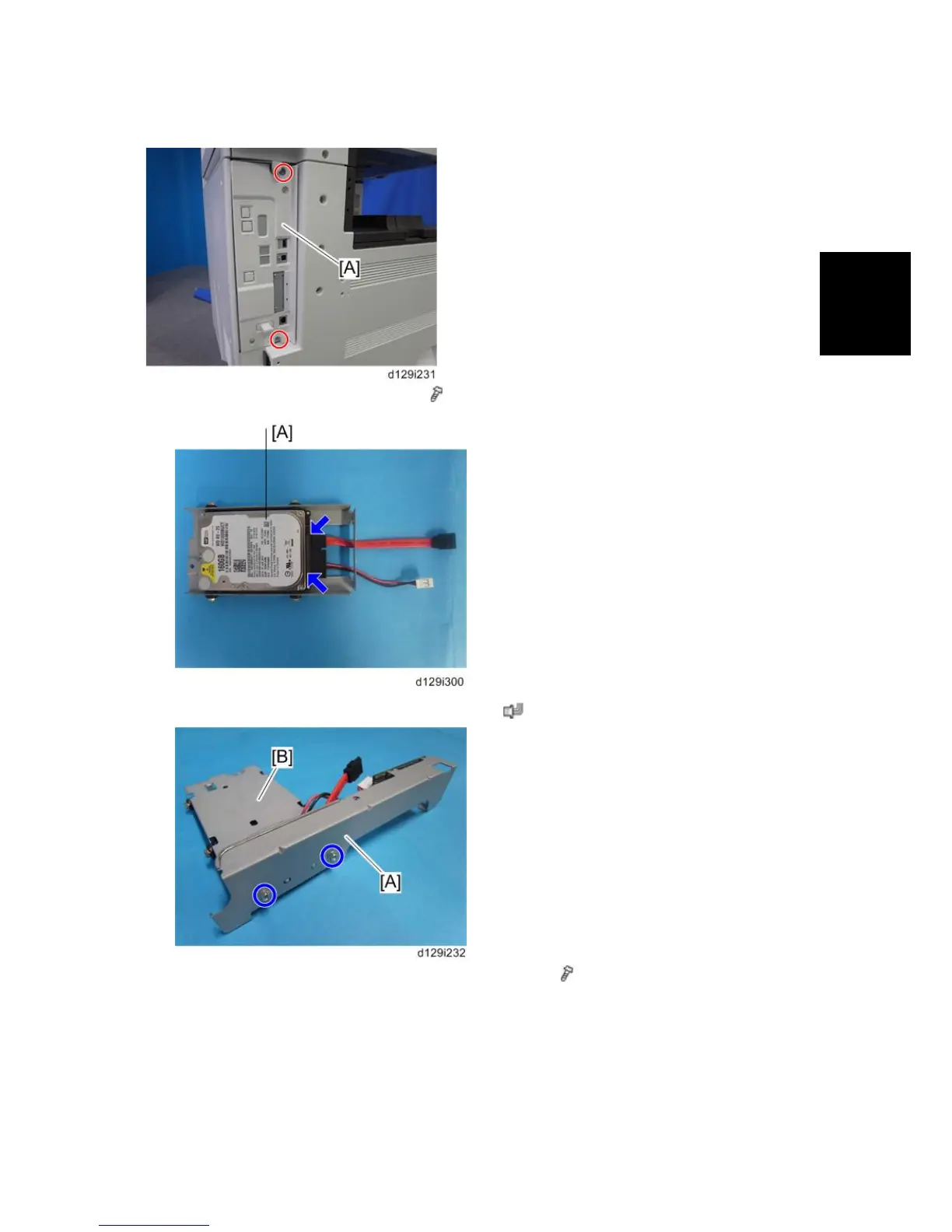

2.20.2 INSTALLATION PROCEDURE
1. Remove the controller board unit [A] (
x 2).
2. Connect the two harnesses to the HDD unit [A] (
x 2).
3. Install the connecting board unit [A] on the HDD unit [B] (
x 2).
