Ricoh D129 - Lower Transport Motor; Upper Transport Motor and Exit Motor

MOTORS
B408/D588 4 SM

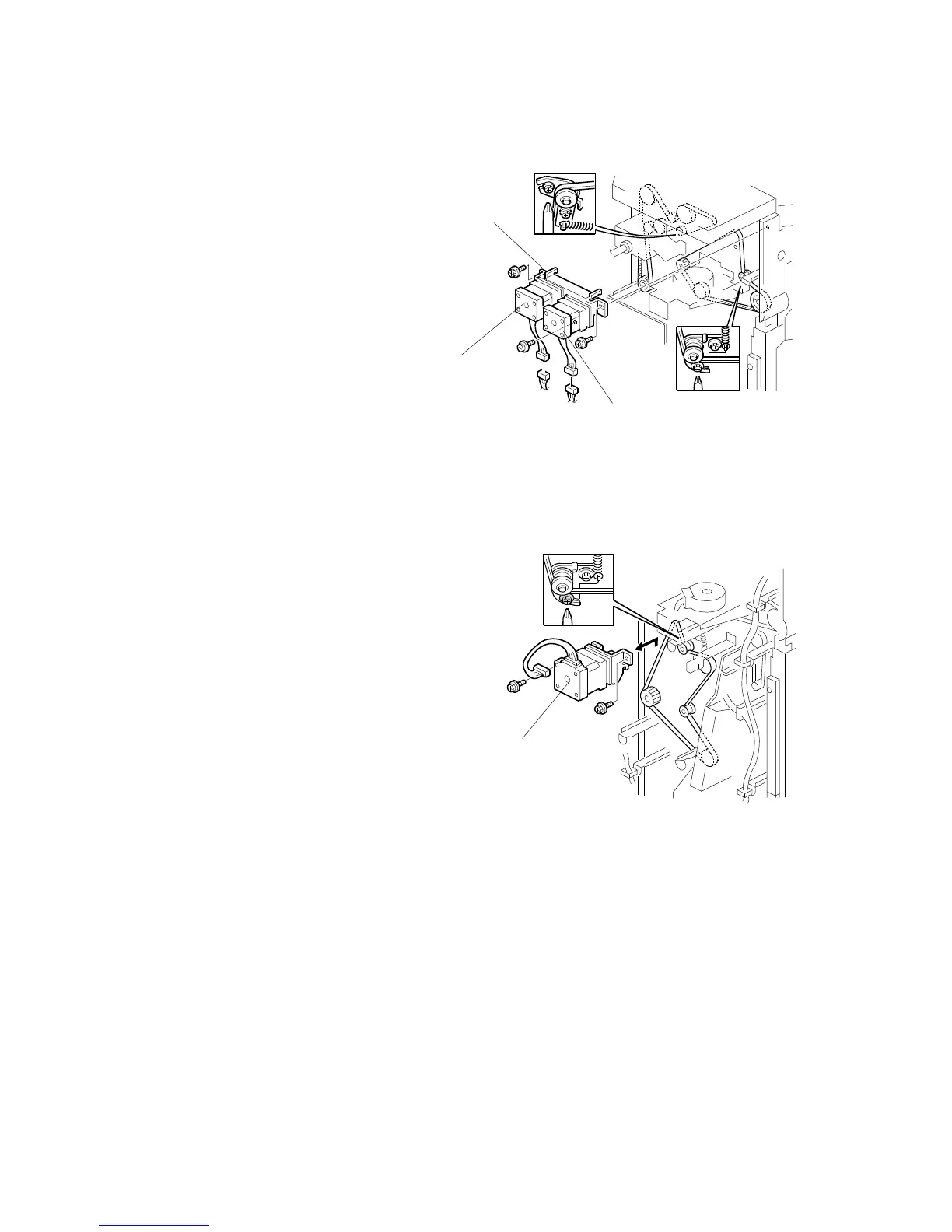

1.3.3 UPPER TRANSPORT MOTOR AND EXIT MOTOR
1. Rear cover (1.1)
2. Motor assembly [A] ( x 4,  x 2)
3. Upper transport motor [B] ( x 4)
4. Exit motor [C] ( x 4)
1.3.4 LOWER TRANSPORT MOTOR
1. Main PCB (1.1)
2. Lower transport motor [A] ( x 2,  x
1)
B408R112.WMF
B408R111.WMF
[A]
[B]
[C]
[A]
