Component Layout

D631 12 SM

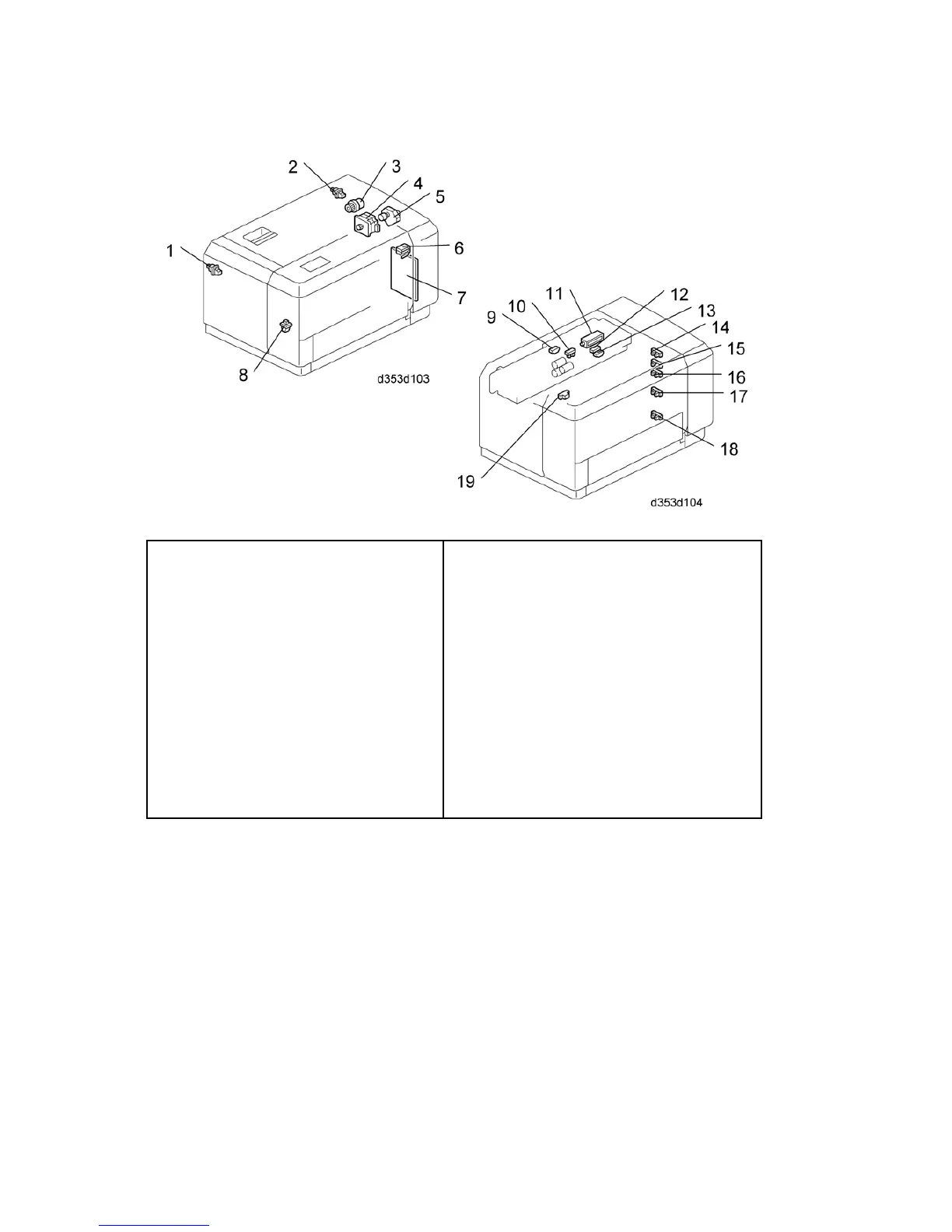

2.1.2 ELECTRICAL COMPONENT LAYOUT

1. Front LCT Set Switch

2. Rear LCT Set Switch

3. Paper Feed Clutch

4. Paper Feed Motor

5. Tray Lift Motor

6. Interlock Switches

7. Main Board

8. Tray Down Switch

9. Relay Sensor

10. Tray Lift Sensor

11. Pick-up Roller Solenoid

12. Paper Feed Sensor

13. Paper End Sensor

14. Paper Height Sensor 1

15. Paper Height Sensor 2

16. Sub Paper Height Sensor

17. Paper Height Sensor 3

18. Lower Limit Sensor

19. Stack Sensor
