Ricoh D129 - Installing a New Web Holder Roller; Installing New Web Rollers

Fusing
SM 4-65 D129/D130
Replacement
and
Adjustment
Installing a new web holder roller

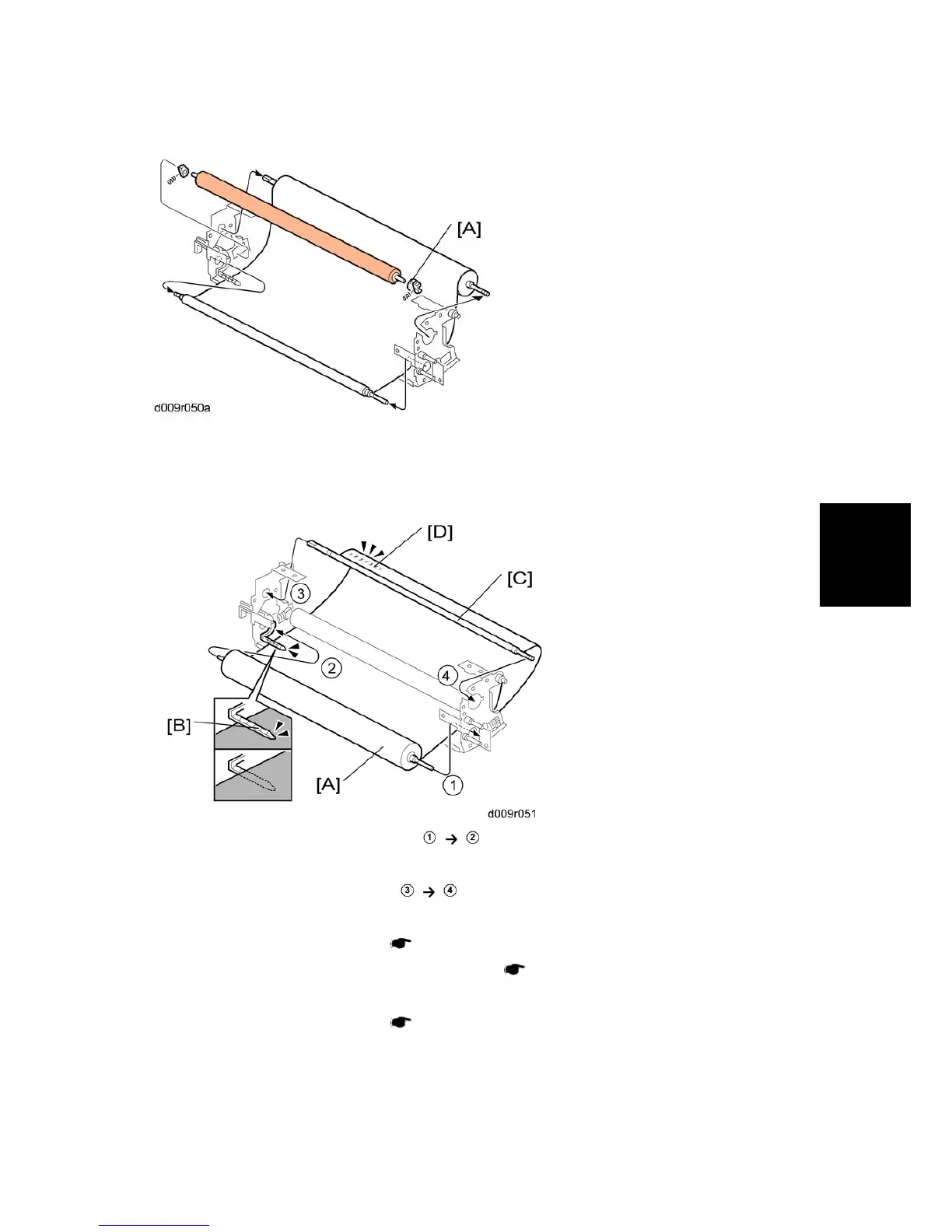

The holder [A] has a one-way clutch. Make sure that the holder [A] is set at the front side.
Installing new web rollers
1. Install the web supply roller [A] first (
). Make sure that the web sheet is under the
pin [B].
2. Install the web take up roller [C] (
). Make sure that the printed number [D] is
outside the web take up roller.
3. Reinstall the rear gear bracket (
p.4-63 "Web Holder Roller and Web Rollers").
4. Reinstall the front and rear gears and bushings (
p.4-63 "Web Holder Roller and Web
Rollers").
5. Reinstall the rear gear bracket (
p.4-63 "Web Holder Roller and Web Rollers").
