Ricoh D129 - Platen Cover (D593)

Platen Cover (D593)
D129/D130 2-52 SM
2.12 PLATEN COVER (D593)

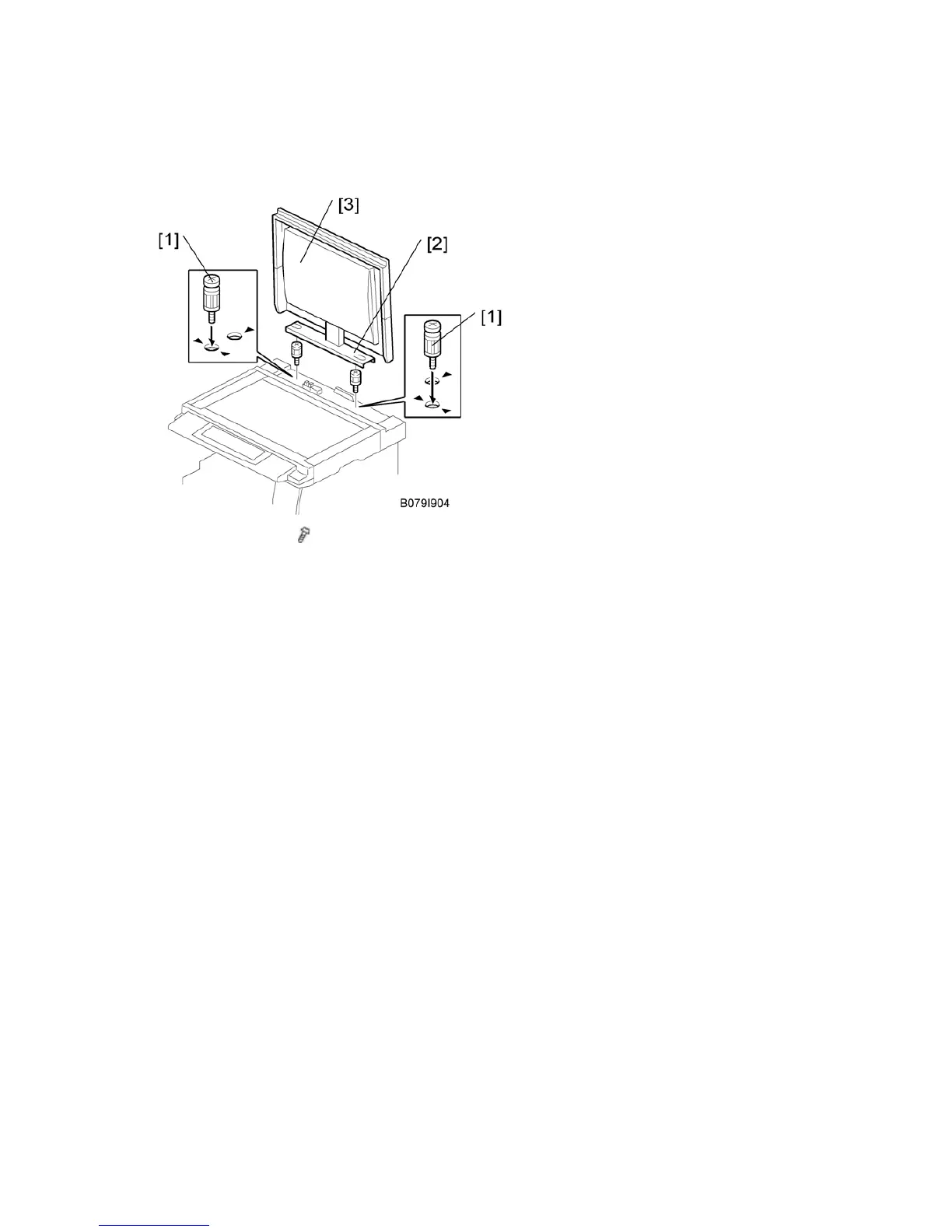

1. Install screws [1] (
x 2) on the top cover as shown.
2. Position the platen cover bracket [2] on the heads of the stud screws, and slide the platen
cover [3] to the left.
