Electrical Components
D631 8 SM
1.4.4 PAPER FEED, PAPER END, TRAY LIFT AND RELAY
SENSORS
1. Front cover ( p.2 "Front and Top Covers")
2. Top Cover ( Front and Top Covers)

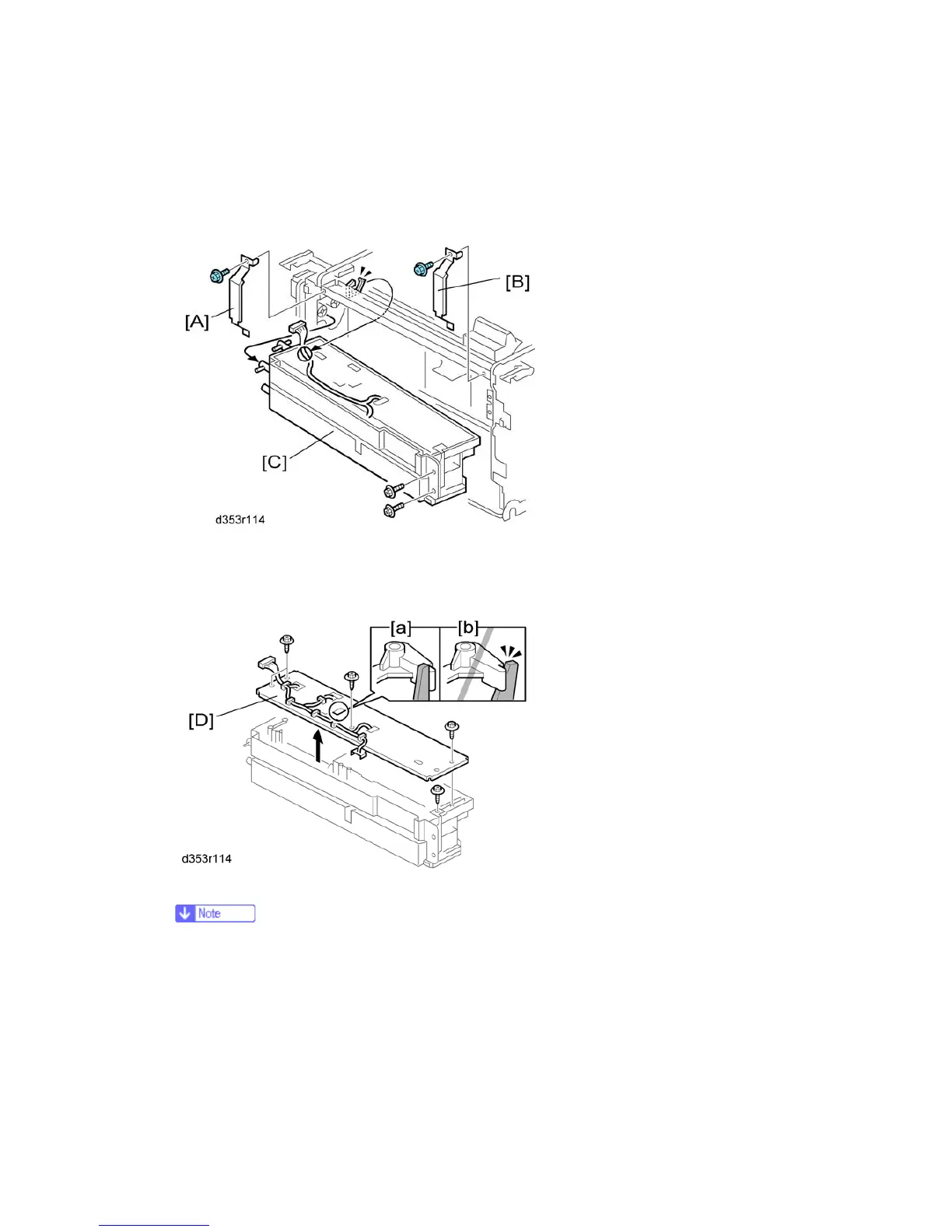

3. Rear ground plate [A] ( x 1)
4. Front ground plate [B] ( x 1)
5. Paper feed unit [C] ( x 2, x 1, x 1)
6. Paper feed unit cover [D] ( x 5, x 1)
Before you re-install the paper feed unit cover, make sure that the pick-up solenoid
holds the pick-up roller lever ([a]: correct, [b]: incorrect) and the pick-up roller works
properly.
