Scanner
D129/D130 4-22 SM
4.4.7 SCANNER MOTOR
1. Scanner rear cover ( p.4-11 "Scanner Exterior Panels and Operation Panel")

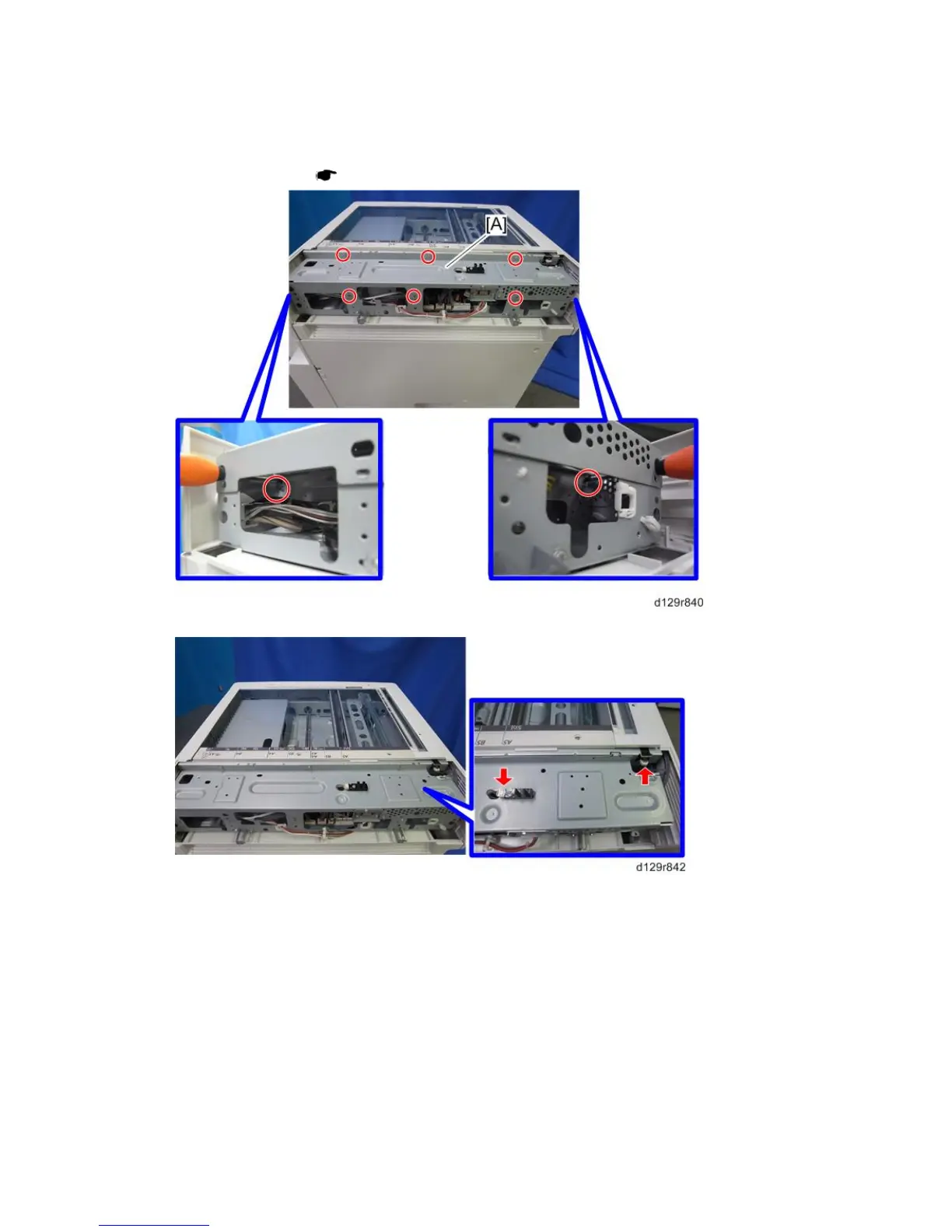

2. Remove the 8 screws of the scanner rear frame [A].
3. Disconnect the two connectors.
