and
Adjustment
4.6 PCDU
4.6.1 PCDU (PHOTOCONDUCTOR AND DEVELOPMENT UNIT)

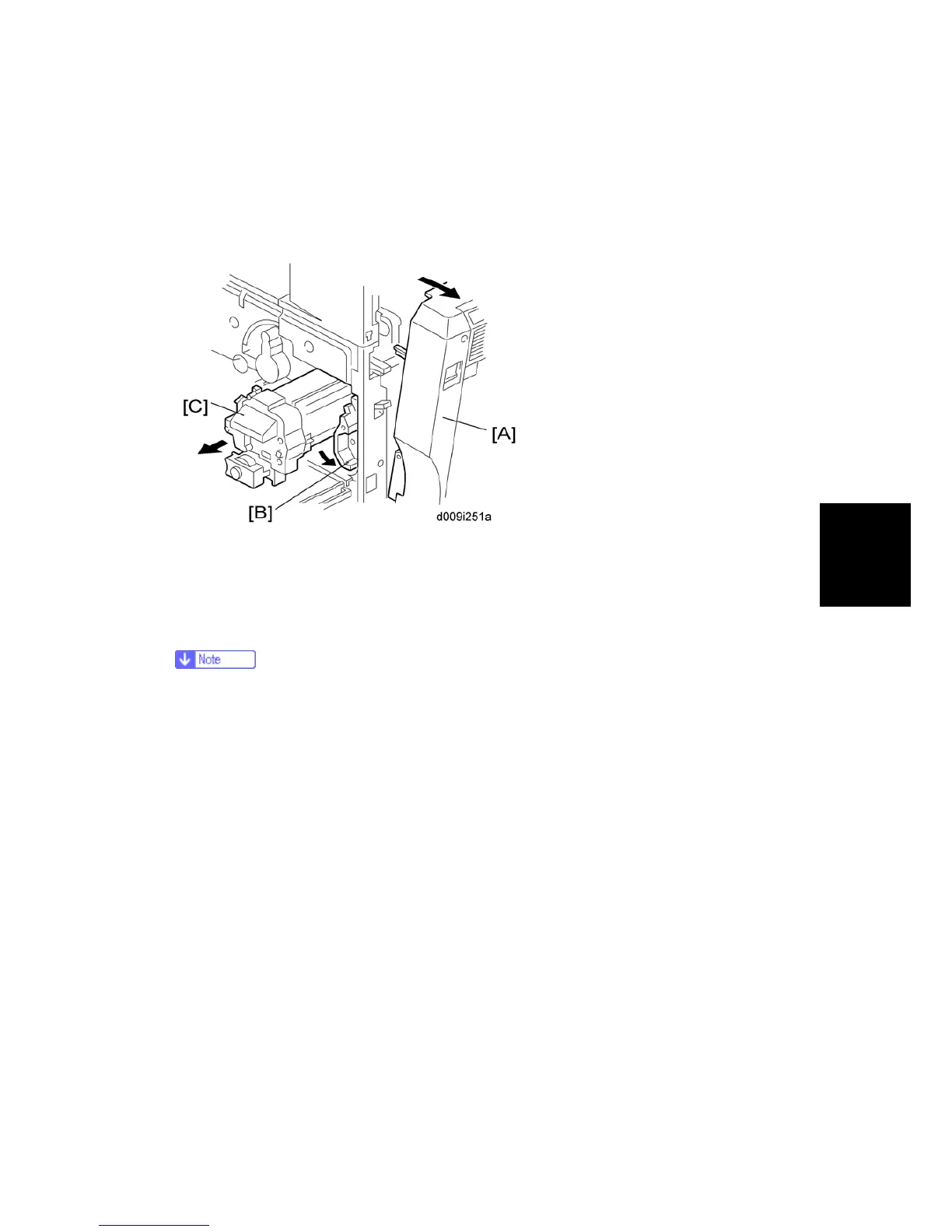

1. Open the front door.
2. Open the right door [A].
3. Release the lock lever [B].
4. Pull out the PCDU [C] and place it on a clean flat surface.
5. Spread a large piece of paper on a flat surface.
Make sure the area is free of pins, paper clips, staples, etc. to avoid attraction to
the magnetic development roller.
Reinstallation
Open the right cover before you install the PCDU in the machine.
