Exterior Covers
SM 4-3 D129/D130
Replacement
and
Adjustment
4.3 EXTERIOR COVERS

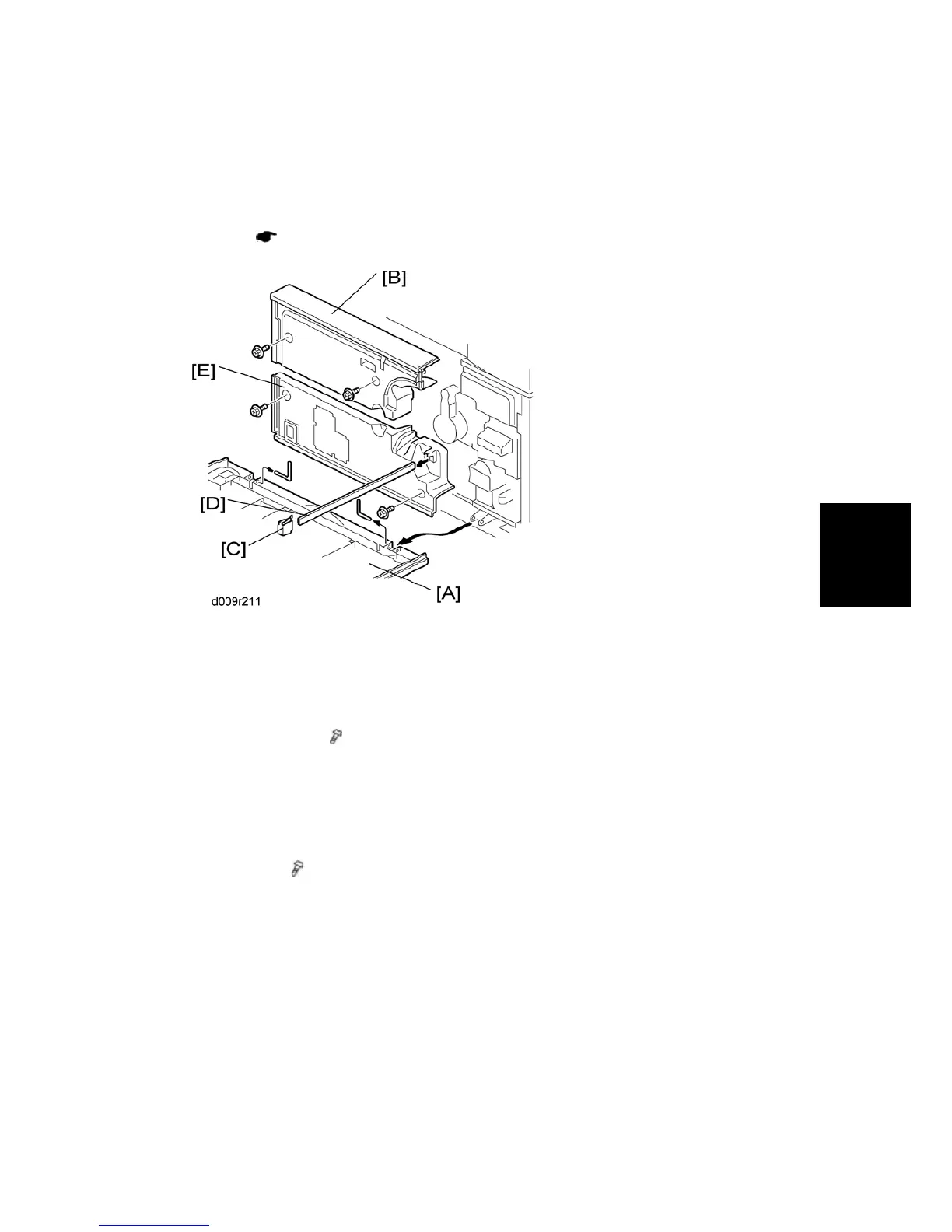

4.3.1 FRONT DOOR, UPPER AND LOWER INNER COVER
1. Left Cover ( p.4-4)
2. Open and remove the front door [A] (pin x 2).
Upper Inner Cover
1. Open the front door [A].
2. Upper inner cover [B] ( x 2)
Lower Inner Cover
1. Remove the front door [A] (pin x 2)
2. Shield glass cover [C]
3. Shield glass [D] (
x 2)
4. Lower inner cover [E]
