Exterior Covers
SM 4-9 D129/D130
Replacement
and
Adjustment
[E]
[F]

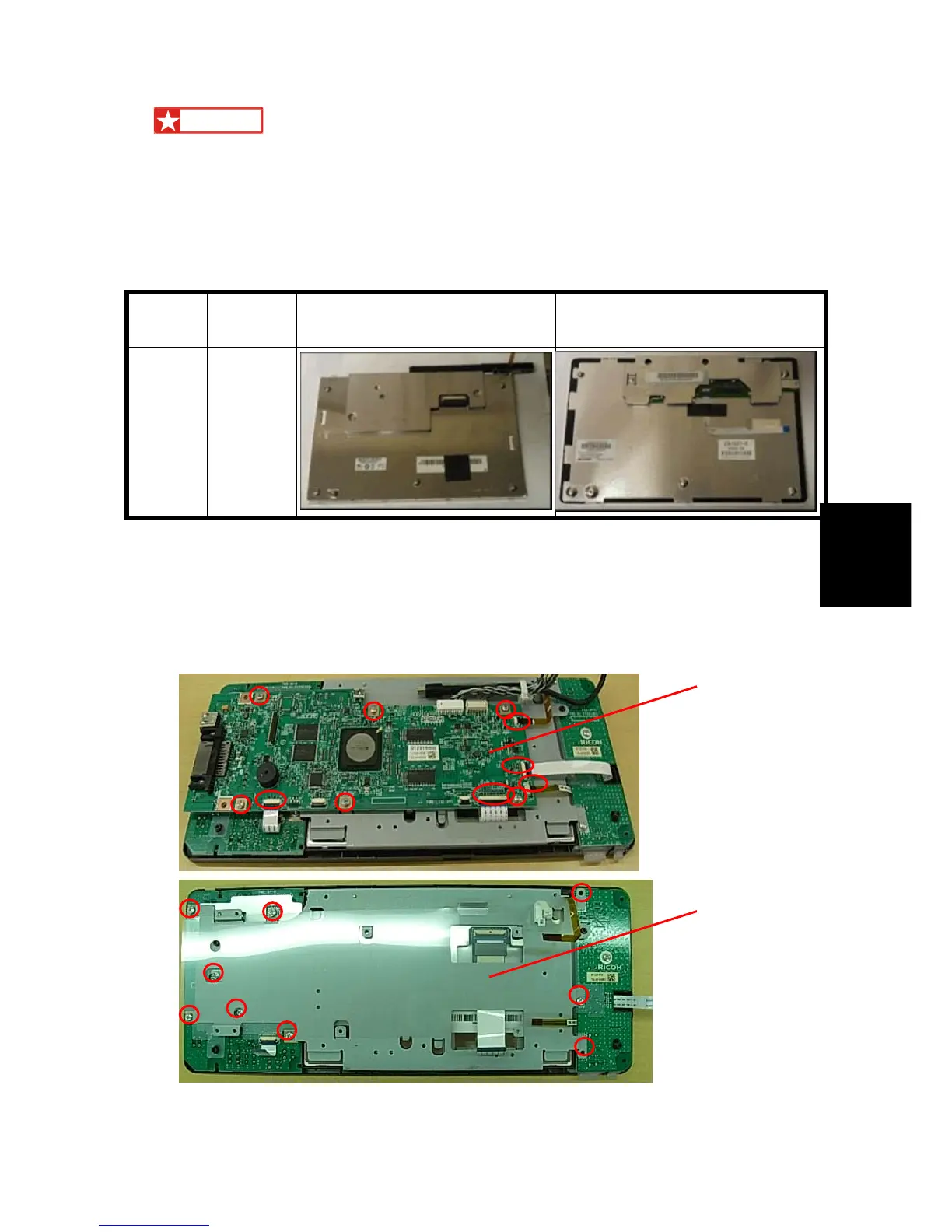

Important
- There are two types of LCDs that use the same part number (D1291420), labeled Type
A and Type B below. They are completely interchangeable (0.
- However, the harnesses are connected in slightly different locations on the board. Make
sure to connect the harnesses in the correct position, depending on the type of LCD.
Harness connectors and screws are circled in red for both types.
5. Remove the LCDC [E] ( x 6, x 5).
6. Remove the bracket [F] ( x 9).
7. Remove the LCD.
Replacing TYPE A:
Part
number
Description
Type A Type B
D1291420 LCD:TFT:
WVGA:
LED:MV
Rev. 09/11/2012
⇒
