Ricoh D158 - Installation Procedure

Controller Options
D158/D159/D160/D161/D170 2-83 SM
Installation
Installation Procedure
 Unplug the main machine power cord before you do the following procedure.
1. Rear cover (
p.4-4)

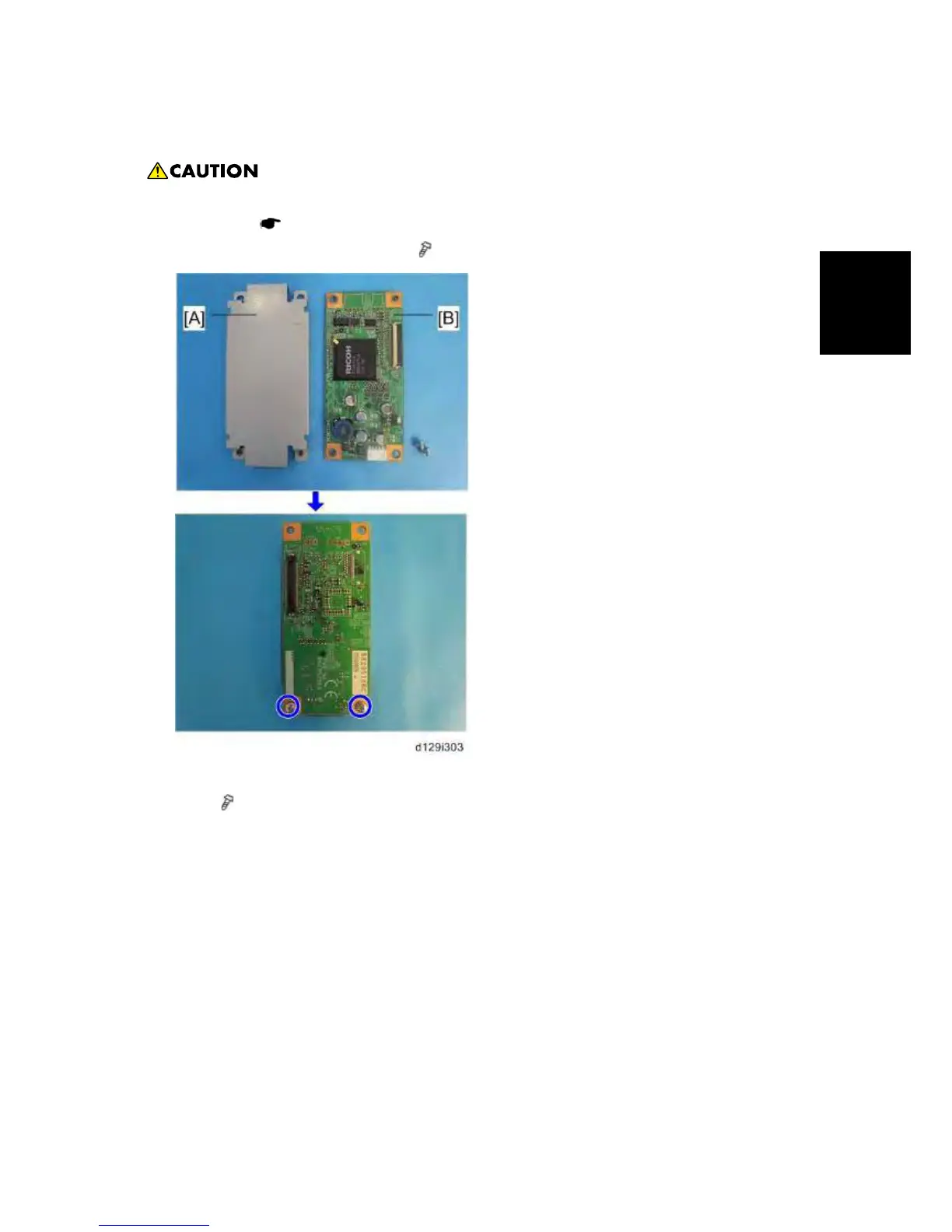

2. Attach bracket [A] to the ICIB-3 [B] (
x 2).
3. Align the dent [B] with the connector [C] and connect the ICIB-3 with bracket 1 [A] on the
BICU (
x 2).
