Ricoh D158 - Adjusting the Scanner Positions

Scanner Unit (D158/D159)
D158/D159/D160/D161/D170 4-37 SM
Replacement
and
Adjustment
4.4.10 ADJUSTING THE SCANNER POSITIONS

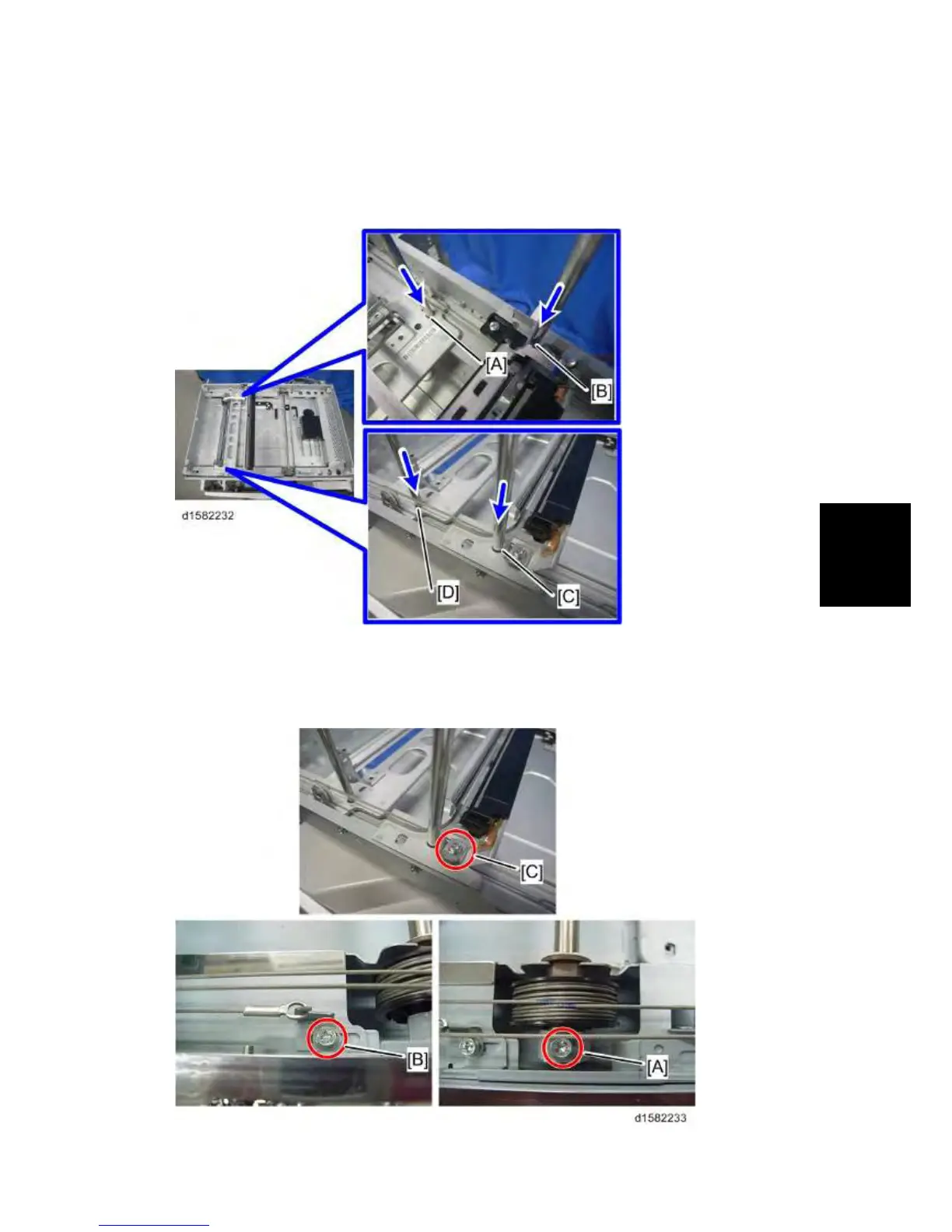

1. Insert a scanner-positioning pin through the 2nd carriage holes [A] and [D].
2. Insert another scanner positioning pin through the 1st carriage hole [B] and [C].
3. Screw the drive pulley to the shaft [A].
4. Screw the scanner wire bracket to the front rail [B].
5. Install the scanner wire clamp [C].
