Ricoh D158 - Installation Procedure

Controller Options
D158/D159/D160/D161/D170 2-108 SM
Installation Procedure

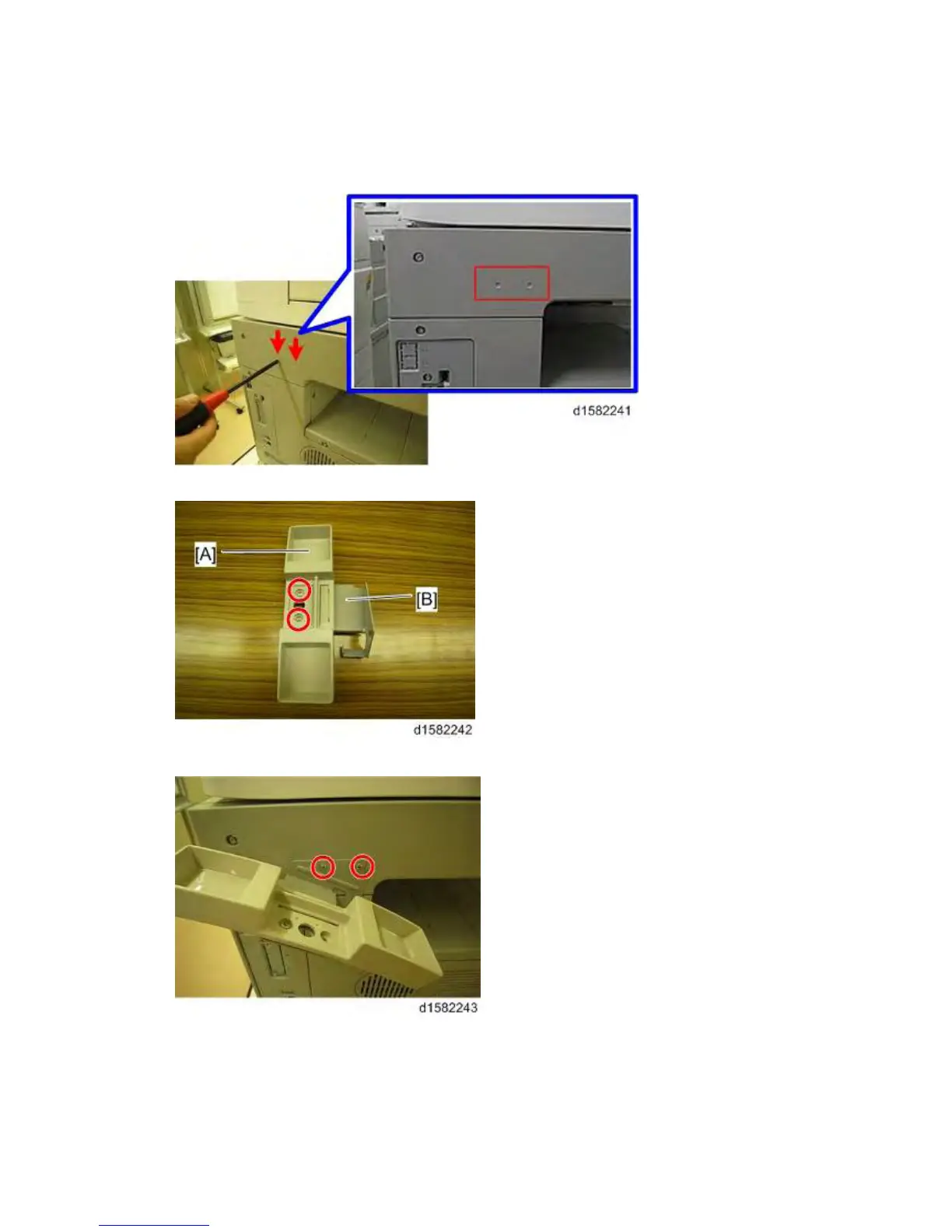

1. Make two screw holes in the upper left cover.
2. Attach the cradle [A] to the bracket [B] (Round screw x 2).
3. Attach the cradle to the upper left cover (Tapping screw x 2).
4. Cut the knockouts for TEL and LINE.
