Ricoh D158 - Exit Sensor

Paper Feed Section
D158/D159/D160/D161/D170 4-60 SM
4.9.3 EXIT SENSOR
1. Output tray, exit cover, exit rear cover ( p.4-4)
2. Front right cover (
p.4-12)
3. Operation panel lower cover (D158/D159 only) (
p.4-8)
4. Open the duplex unit.

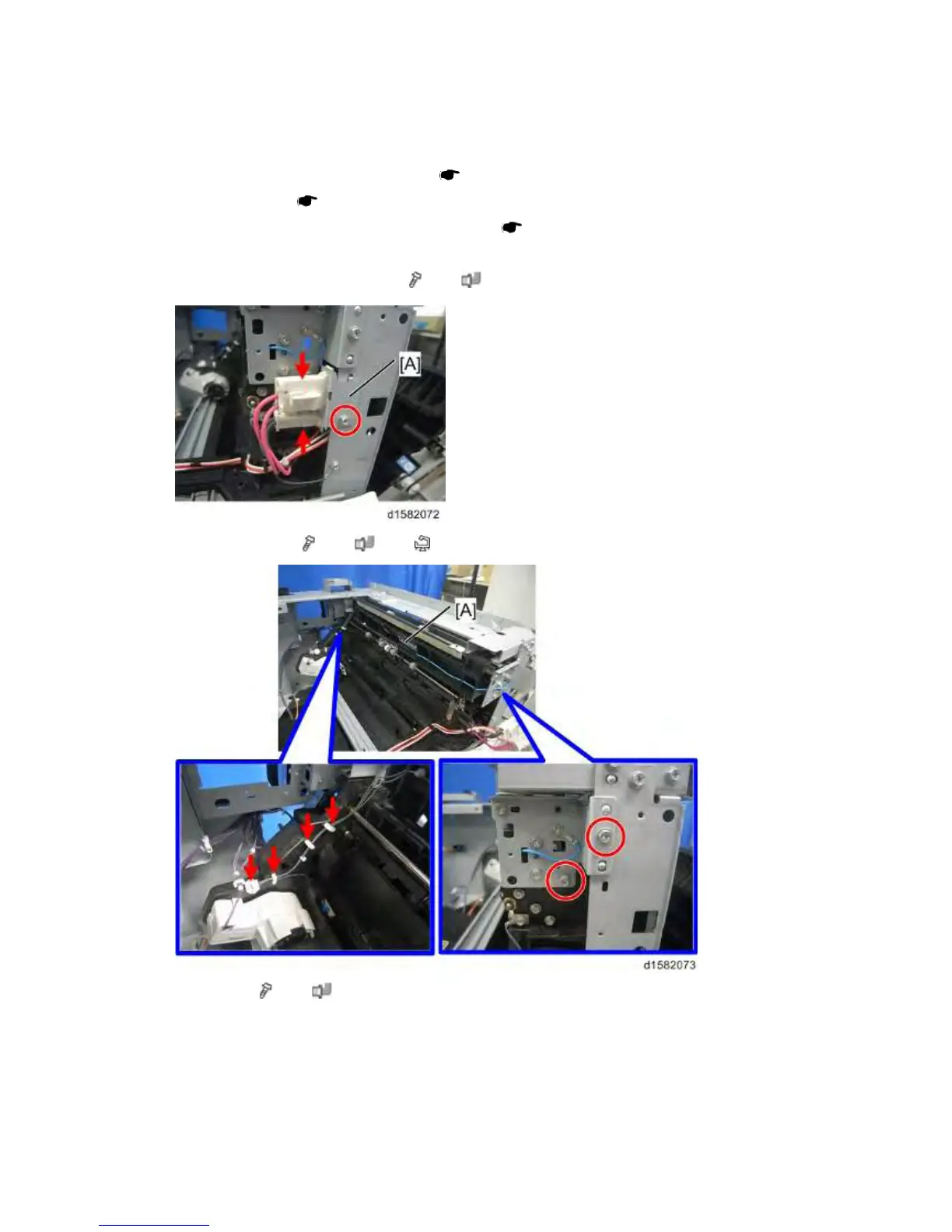

5. Fusing unit connector bracket [A] (
x 1, x 2)
6. Upper guide [A] (
x 2, x 1, x 3)
7. Guide [A] (
x 2, x 1)
