Ricoh D158 - Transport Motor

Motors and Clutch
D698 4 SM
1.2.2 TRANSPORT MOTOR
1. Pull out the Tray.
2. Rear cover ( p.1 "Covers")
3. Rear right cover (
p.1 "Covers")

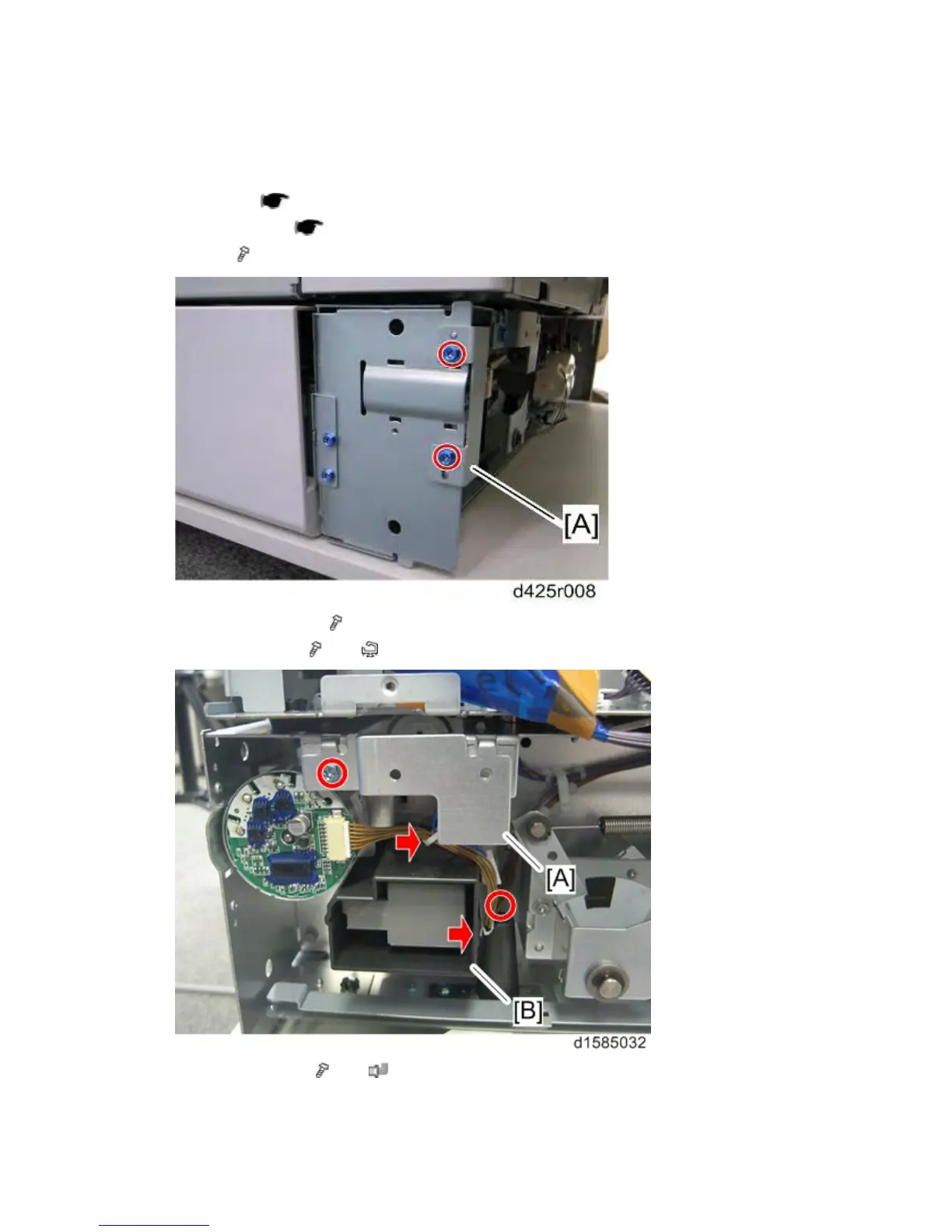

4. Stay [A] (
x 2)
5. Rear right bracket [A] (
x 1)
6. Tray end cover [B] (
x 1, x 2)
7. Transport motor [A] (
x 3, x 1)
