Electrical Components
D158/D159/D160/D161/D170 4-104 SM

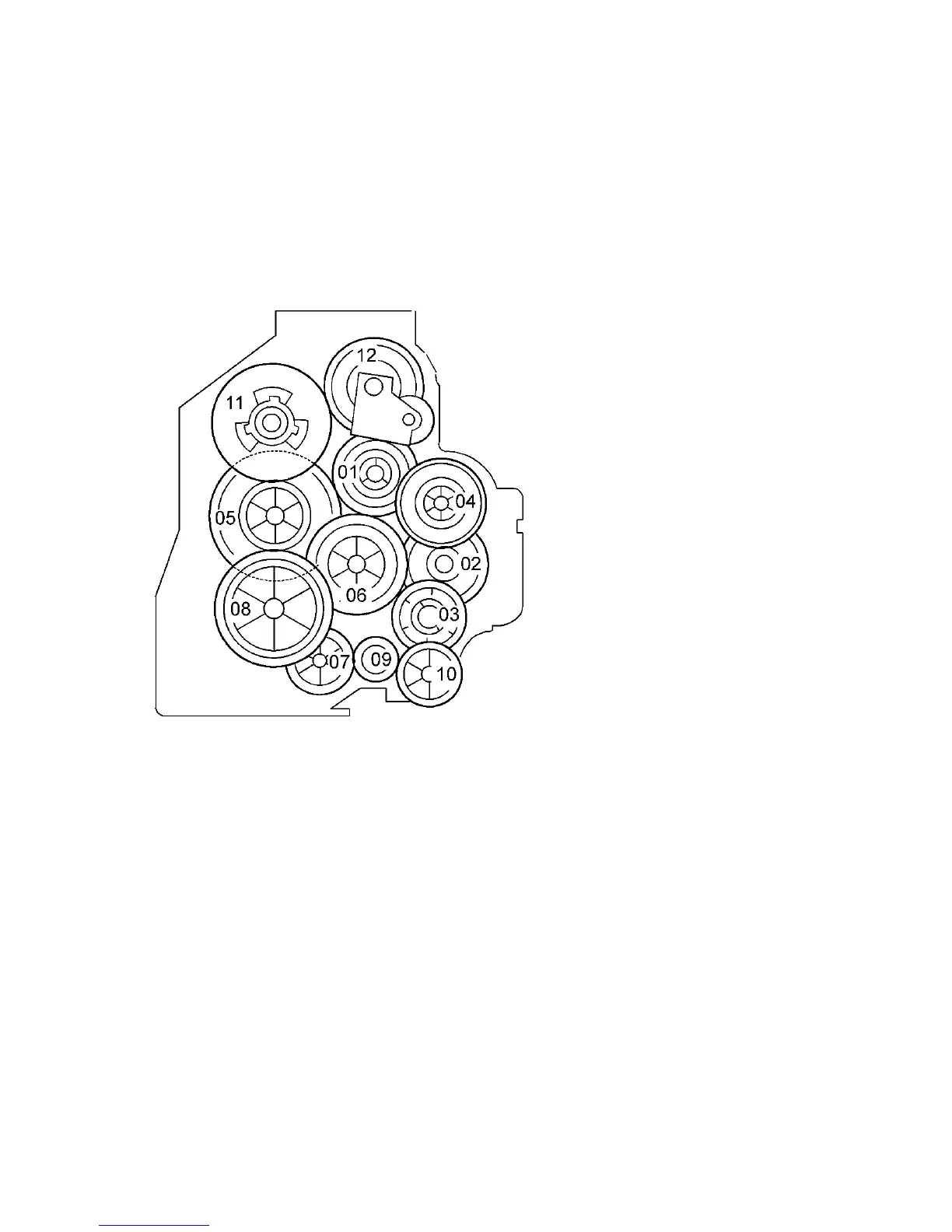

Gear Arrangement in the Gearbox
The gears are numbered 1 to 12 in the order in which they are to be installed in the gearbox.
These numbers show both on the gearbox and on the front (exposed) surface of each gear. If the
gears fall out, start by finding gear number 1 and installing it onto location number 1 (setting it into
place so that the side with the printed number stays visible). Then install the remaining gears (2 to
12) in the same way.
