Electrical Components
D684 14 SM
1.3.6 ORIGINAL EXIT SENSOR
1. Open the left cover.
2. Original feed unit (
p.3 "Original Feed Unit")
3. Original tray (
p.2 "Front Cover and Original Tray")
4. Original feed-in guide plate (
p.8 "Original Set Sensor")

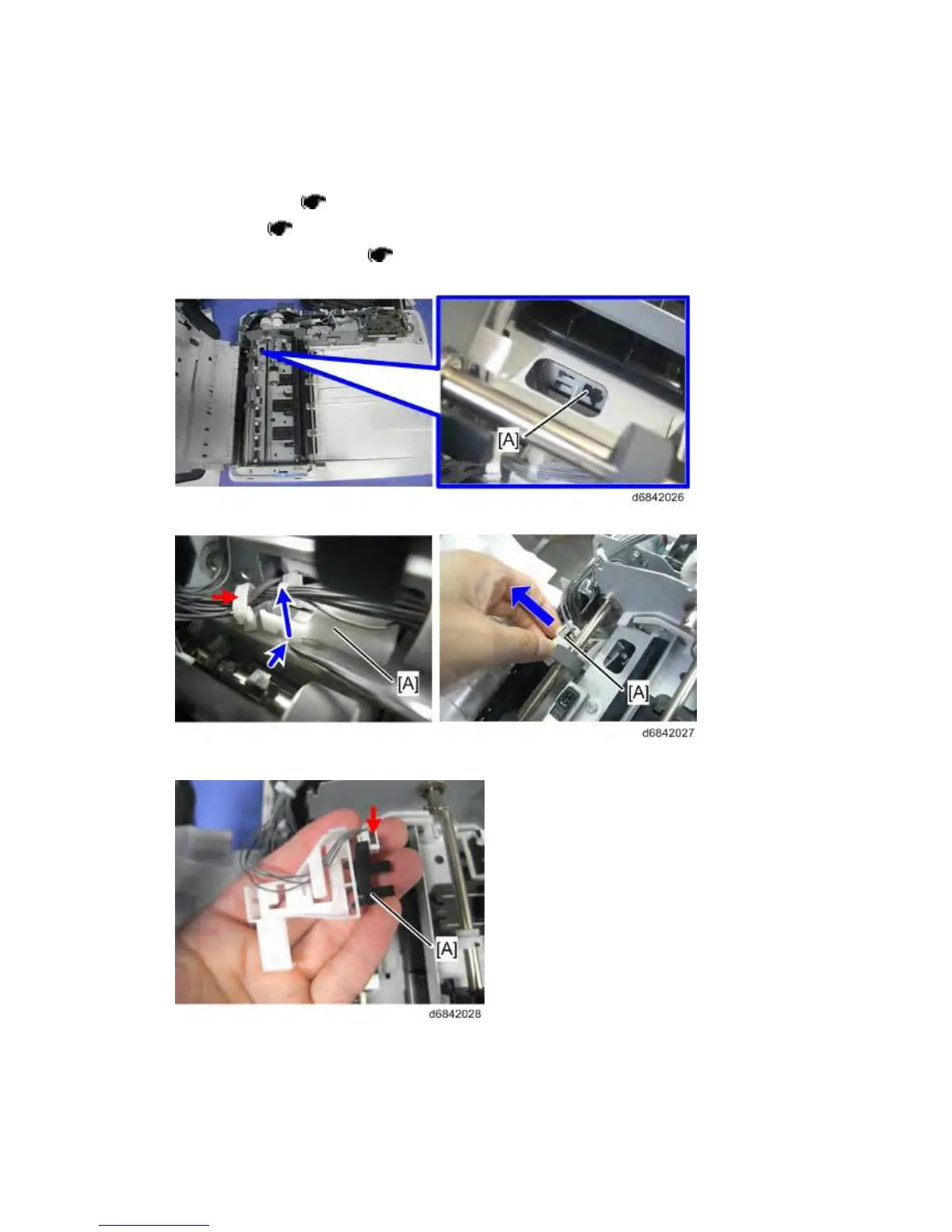

5. The Original Exit Sensor is located in the ARDF mainframe [A].
6. Original exit sensor bracket [A]
7. Original exit sensor [A]
