Using SP Modes
D158/D159/D160/D161/D170 6-13 SM
Service
Tables
6.4 USING SP MODES
6.4.1 ADJUSTING REGISTRATION AND MAGNIFICATION

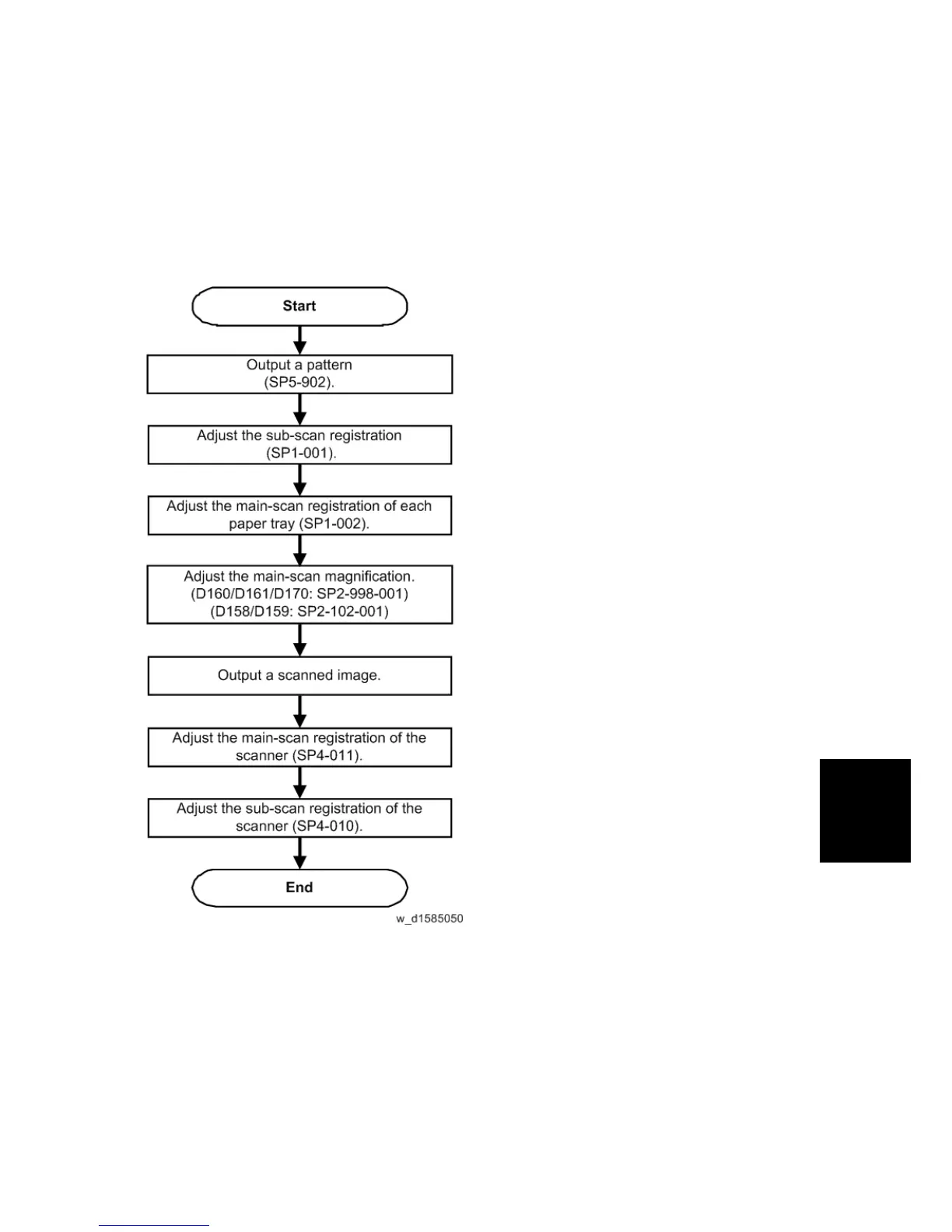

To adjust the registration and magnification, you need to use several service programs. The chart
shows an example of the procedure to adjust the machine in the basic configuration.
