Ricoh D158 - Sensors and Board; Paper End Sensor

Sensors and Board
SM 7 D698
One Tray
Paper Feed
Unit PB2000
(D698)
1.3 SENSORS AND BOARD
 Turn off the main power switch and unplug the machine before beginning any of the
procedures in this section.

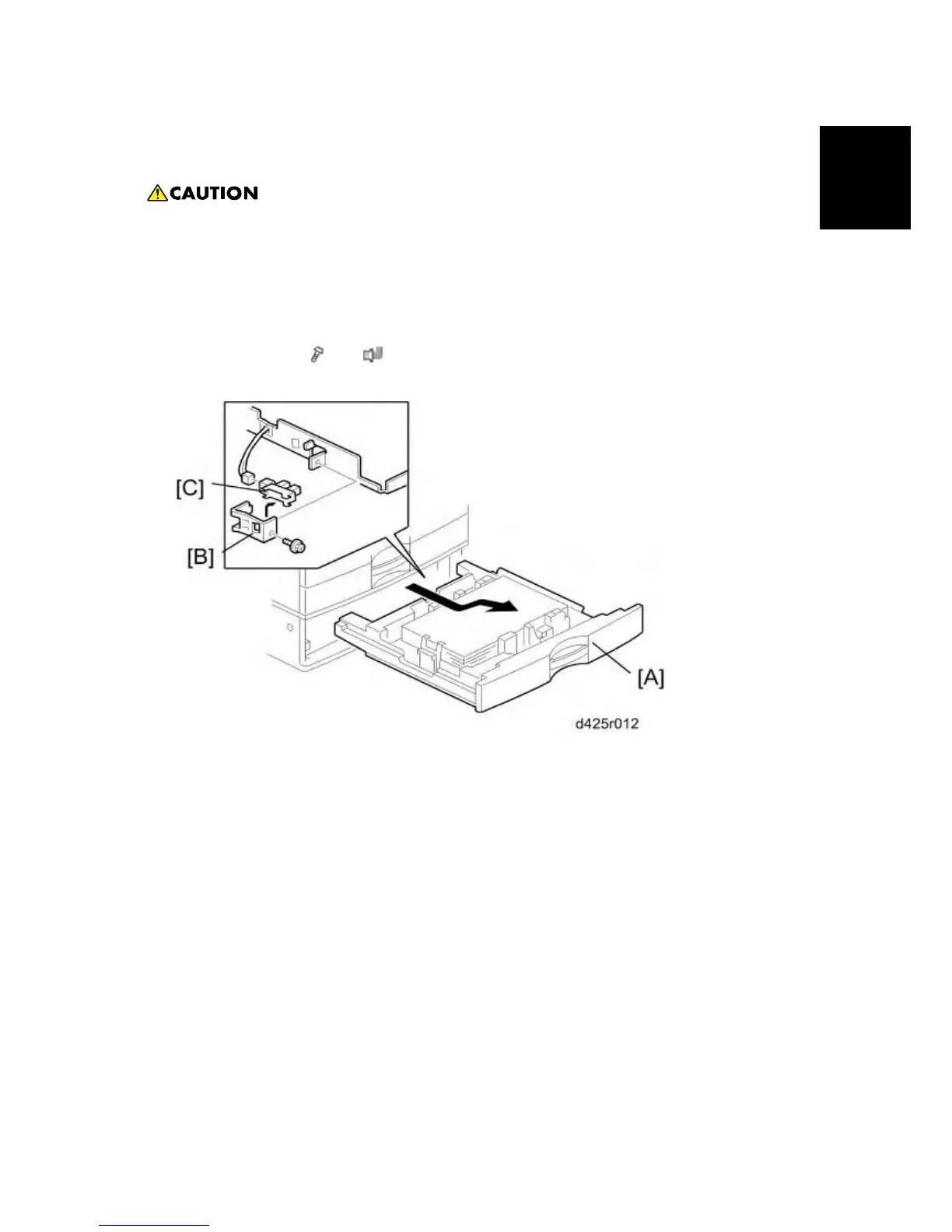

1.3.1 PAPER END SENSOR
1. Pull out the tray [A]
2. Sensor bracket [B] ( x 1, x 1)
3. Paper end sensor [C] (hooks)
