Ricoh D158 - Right Lower Cover (Two-Tray Models Only); Right Lower Cover Switch (Two-Tray Models Only)4-17

Exterior Covers & Operation Panel
D158/D159/D160/D161/D170 4-17 SM
Replacement
and
Adjustment

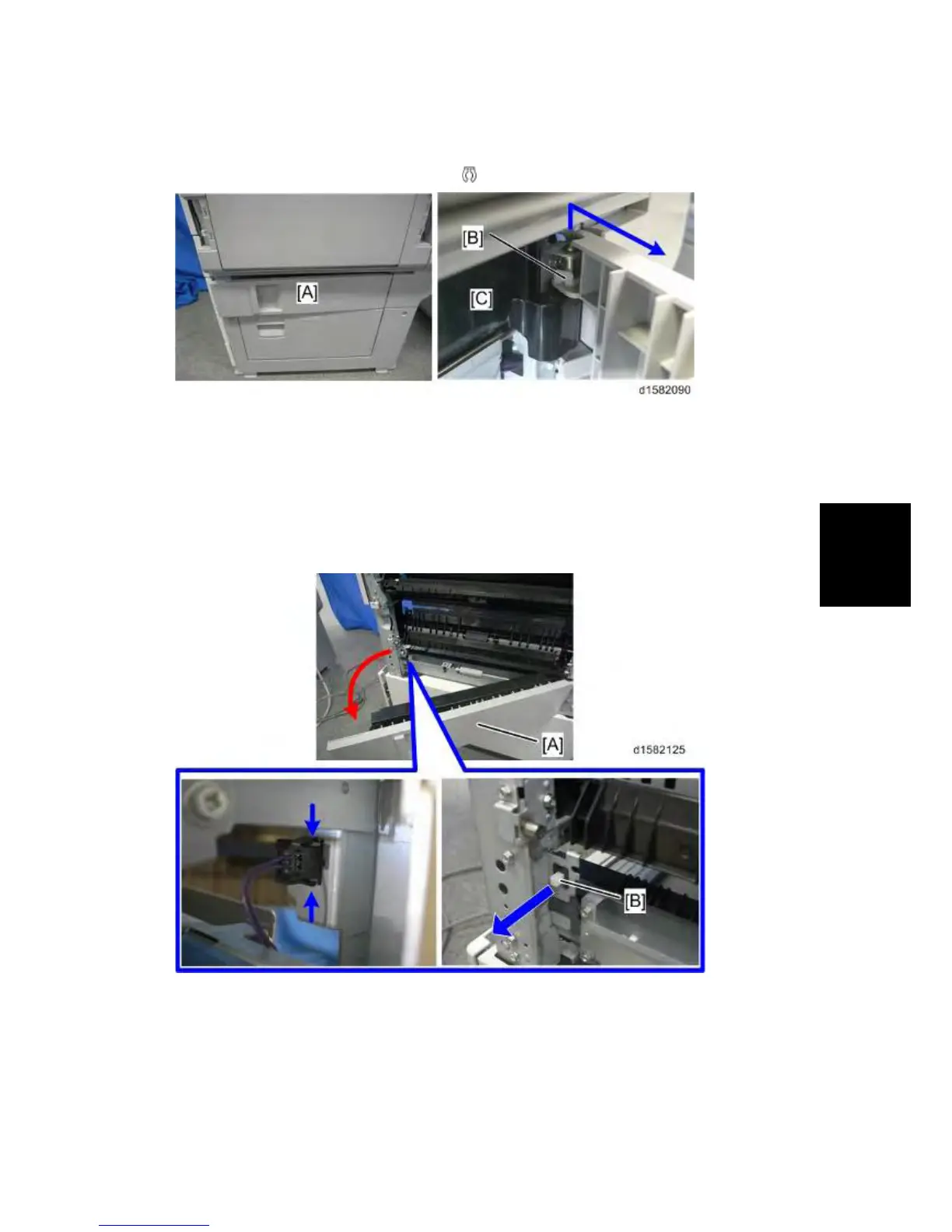

4.3.14 RIGHT LOWER COVER (TWO-TRAY MODELS ONLY)
1. Right lower cover [A] with inner cover [C] ( [B] x 1).
4.3.15 RIGHT LOWER COVER SWITCH (TWO-TRAY MODELS
ONLY)
1. Remove the paper tray 1, and 2.
2. Open the right lower cover [A].
3. Right door switch [B] (Hook x 2)
