Ricoh D158 - Registration Roller

Paper Feed Section
D158/D159/D160/D161/D170 4-62 SM
4.9.4 REGISTRATION ROLLER
1. PCU ( p.4-50)
2. Front cover (
p.4-11)
3. Right door (
p.4-11)

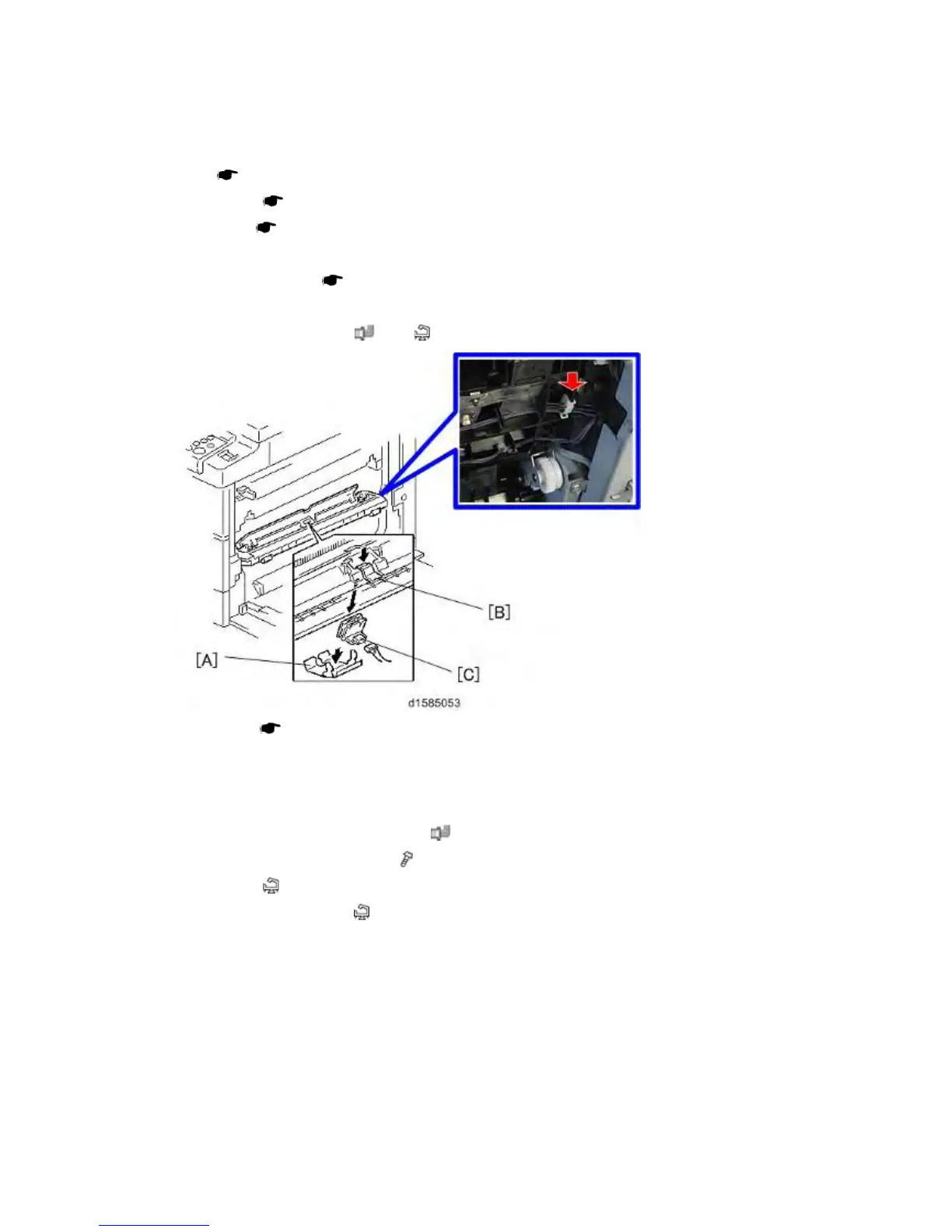

4. Plastic cover [A]
5. Image transfer roller (
p.4-78)
6. Push down on the notch [B] to free the sensor.
7. Image density sensor [C] (
x 1, x 1)
8. Rear cover (
p.4-4)
9. High-voltage power supply
10. Registration clutch
11. Unhook the springs [A] and [B] at the rear and front sides.
12. Cover [K] and registration sensor [L] (
x 1)
13. Guide support [C] and guide [D] (
x 1)
14. Bushing [E] (
x 1)
15. Gear [F] and bushing [G] (
x 1)
16. Registration roller [H] with the image transfer unit [I]
17. Paper jam release lever [J]
