Ricoh D158 - Original Size Sensors and Skew Correction Sensor

Electrical Components
D684 10 SM
1.3.4 ORIGINAL SIZE SENSORS AND SKEW CORRECTION
SENSOR
1. Open the left cover.
2. Original feed unit (
p.3 "Original Feed Unit")
3. Original tray (
p.2 "Front Cover and Original Tray")

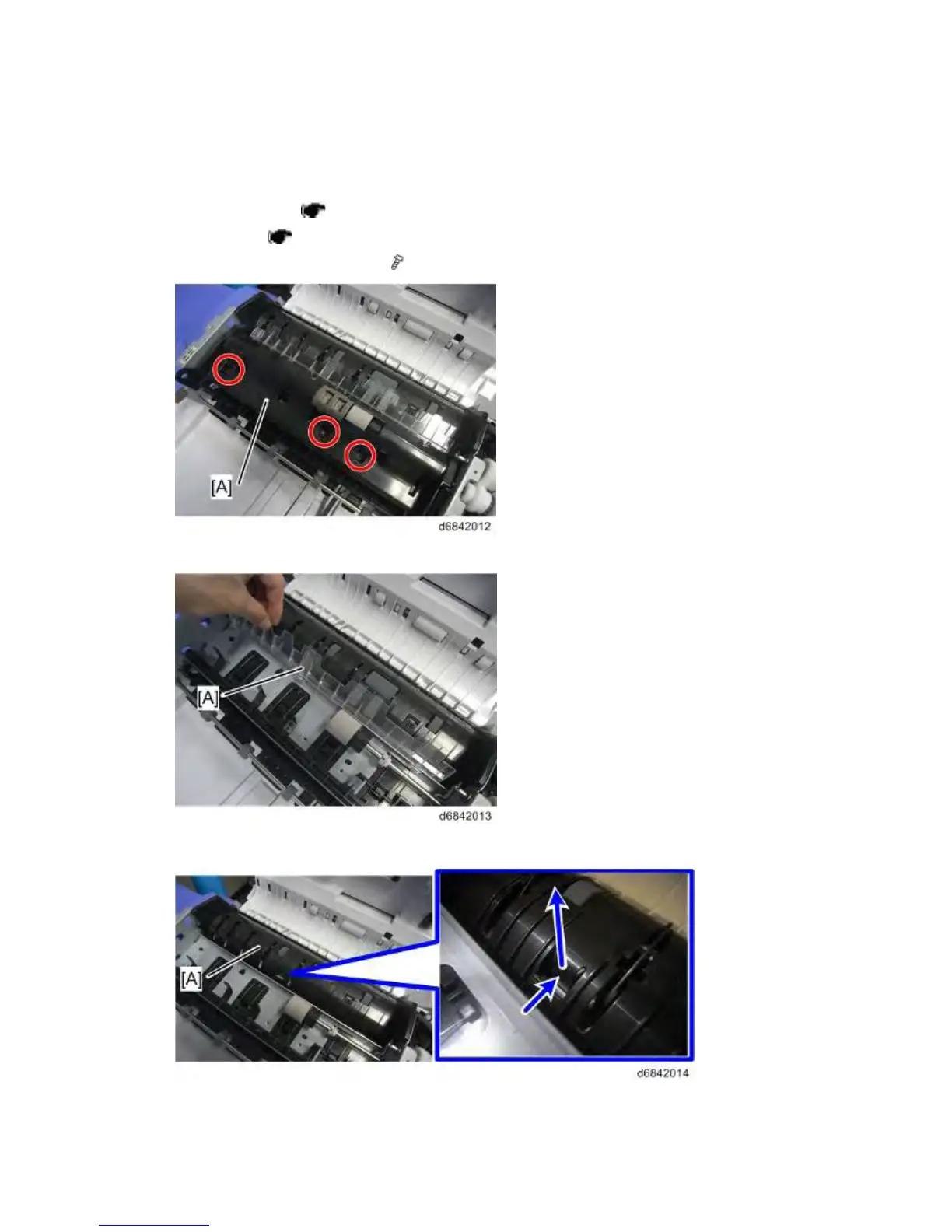

4. Original feed-in guide plate [A] (
x 3).
5. Feed guide [A]
6. Original turn guide plate [A] (hook x 1).
