Controller Options
D158/D159/D160/D161/D170 2-96 SM
3. Make sure that the machine can recognize the option ( p.2-112 "Check All Connections").

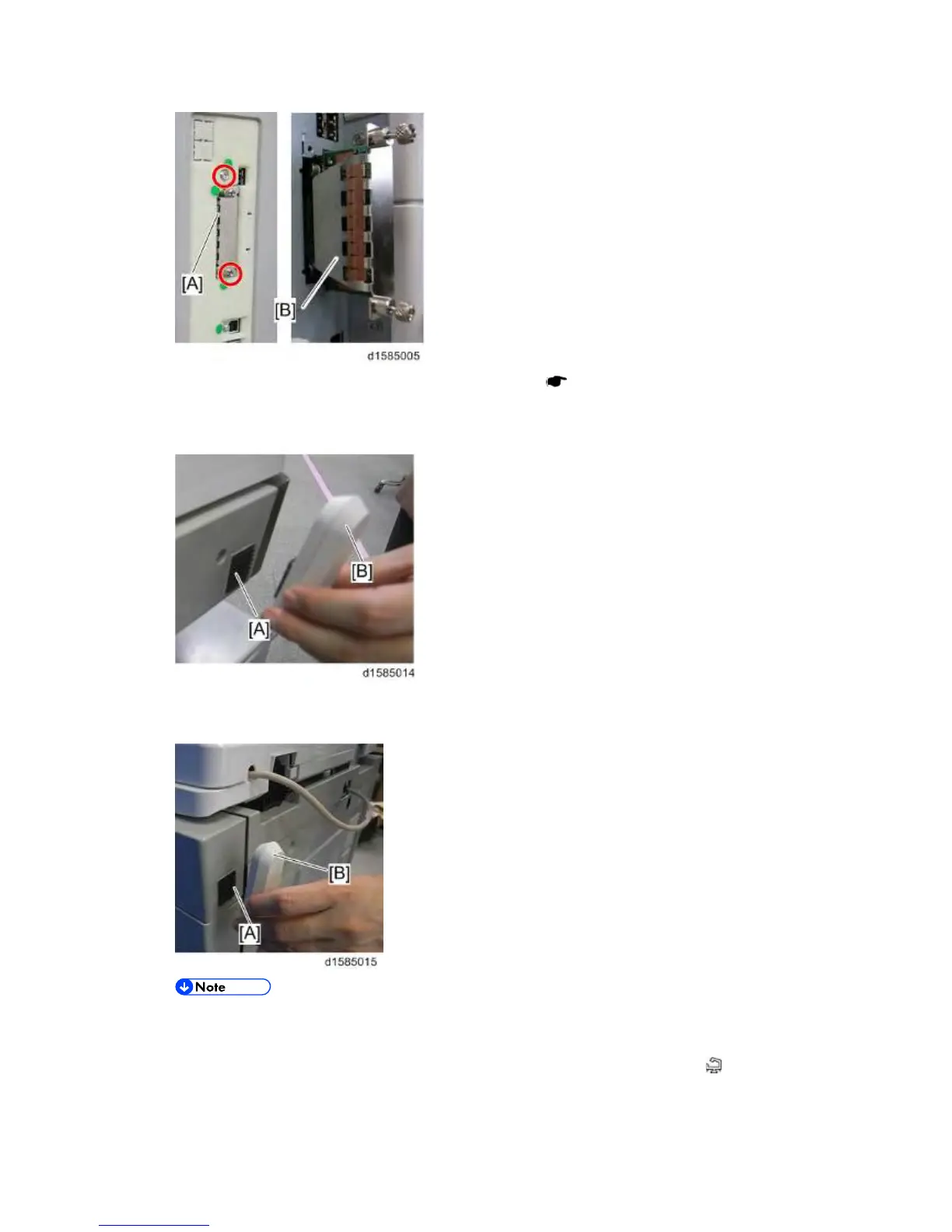

4. Peel off the double-sided tapes on the Velcro fasteners [A], and then attach "ANT1" (having a
black ferrite core) [B] to the front left of the machine.
5. Peel off the double-sided tapes on the Velcro fasteners [A], and then attach "ANT2" (having a
white ferrite core) [B] to the rear right of the machine.
"ANT1" is a transmission/reception antenna and "ANT2" is a reception antenna. Do
not attach them at the wrong places.
6. Attach the clamps as shown above and then wire the cables and clamp them (
x 6).
To Next Page
