Copy Adjustments Printing/Scanning
D158/D159/D160/D161/D170 4-108 SM

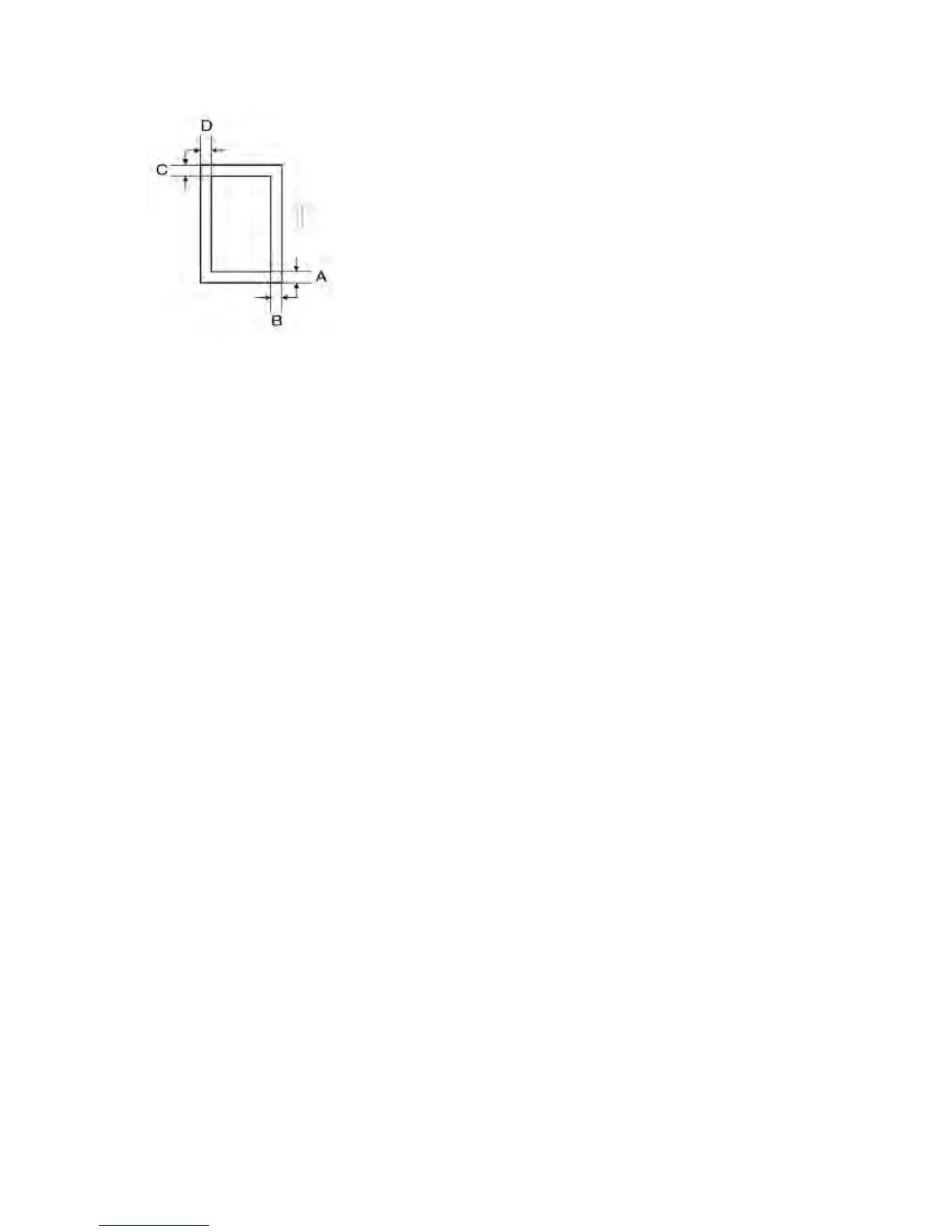

A: Trailing Edge Blank Margin
B: Right Edge Blank Margin
C: Leading Edge Blank Margin
D: Left Edge Blank Margin
- Main Scan Magnification -
1. Print the single-dot grid pattern (D160/D161/D170: SP5-902-001, No.5, D158/D159:
SP2-109-001, No.7).
2. Check the magnification (the grid size should be 2.7 x 2.7 mm), and if necessary use SP 2998
to adjust it. The specification is 100 ± 1%.
