Ricoh Pro C5200s Operating Instructions Troubleshooting: Tcru/Oru

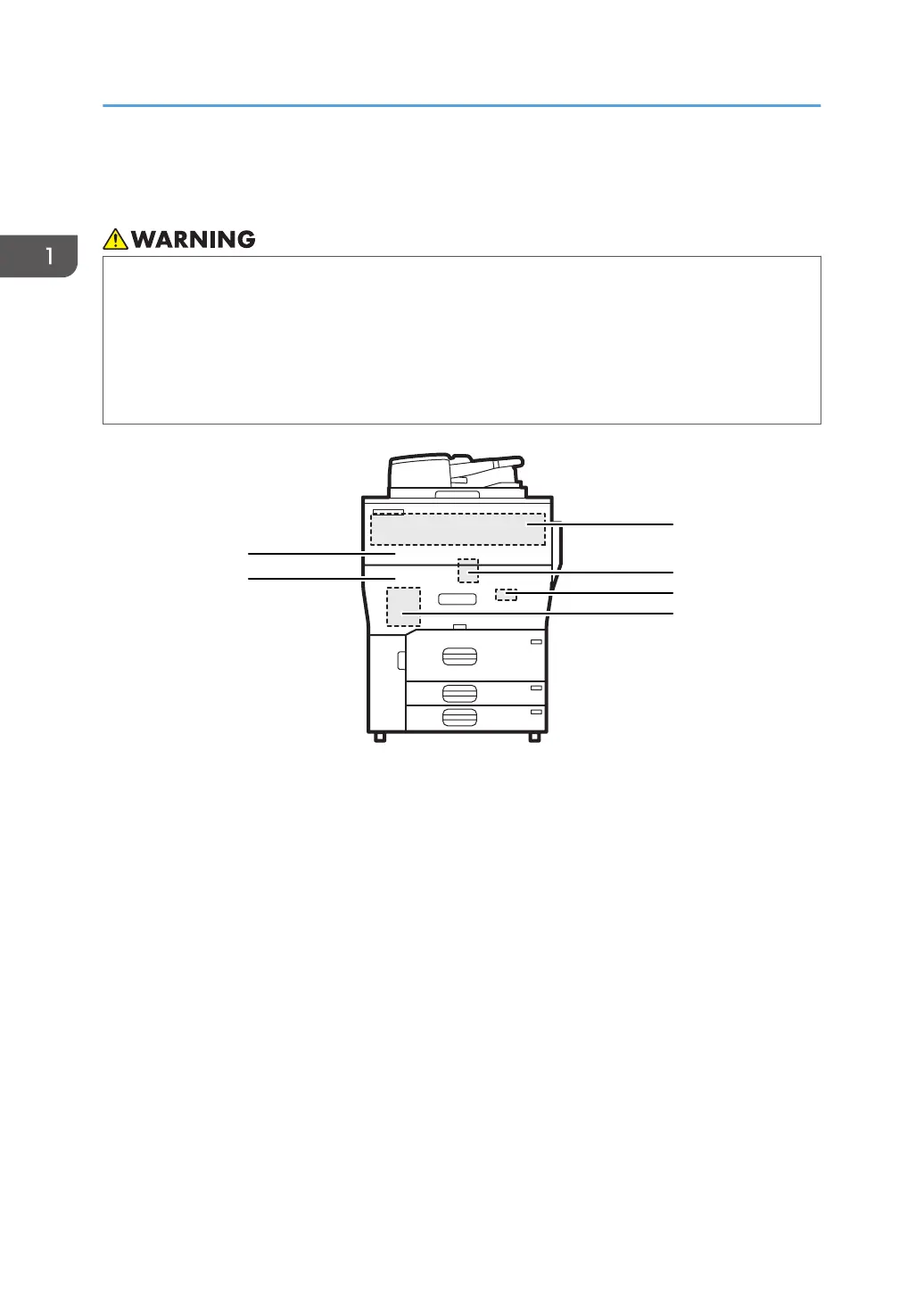

Guide to Components
• Do not remove any covers or screws other than those explicitly mentioned in this manual. Inside
this machine are high voltage components that are an electric shock hazard and laser
components that could cause blindness. Contact your sales or service representative if any of the
machine's internal components require maintenance, adjustment, or repair.
• Do not attempt to disassemble or modify this machine. Doing so risks burns and electric shock.
Note again that exposure to the laser components inside this machine risks blindness.
1
2
3
4
5
6
CWH175
1. Toner Unit
2. Drawer
3. Photoconductor Unit
4. Cleaning Unit for Intermediate Transfer Belt
5. Transfer Unit
6. Fusing Unit
1. Before You Begin
8

Ricoh Pro C5200s Specifications

General

Print Technology	Laser
Max Paper Size	330.2 x 487.7 mm
Monthly Duty Cycle	300, 000 pages
Print Speed	65 ppm
Resolution	1200 x 4800 dpi
Paper Input Capacity	8, 250 sheets
Paper Weight	52 to 360 gsm
Duplex Printing	Standard
Network Connectivity	Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Media Sizes	A3, A4, A5, B4, B5
Supported Media Types	Plain, Recycled, Coated, Envelope
Warm-up Time	Less than 5 minutes
