Ricoh Pro C5200s Operating Instructions Troubleshooting: Tcru/Oru

Folding Deviation
Cause:
Depending on paper hardness, folding deviations (skewed folding) may appear.
A deviation may appear if the edge dimensions of the parts between folds are different.
For example, in the following illustration, the dimensional difference between the top (L2[2]) and bottom
(L2[1]) edges is a deviation.

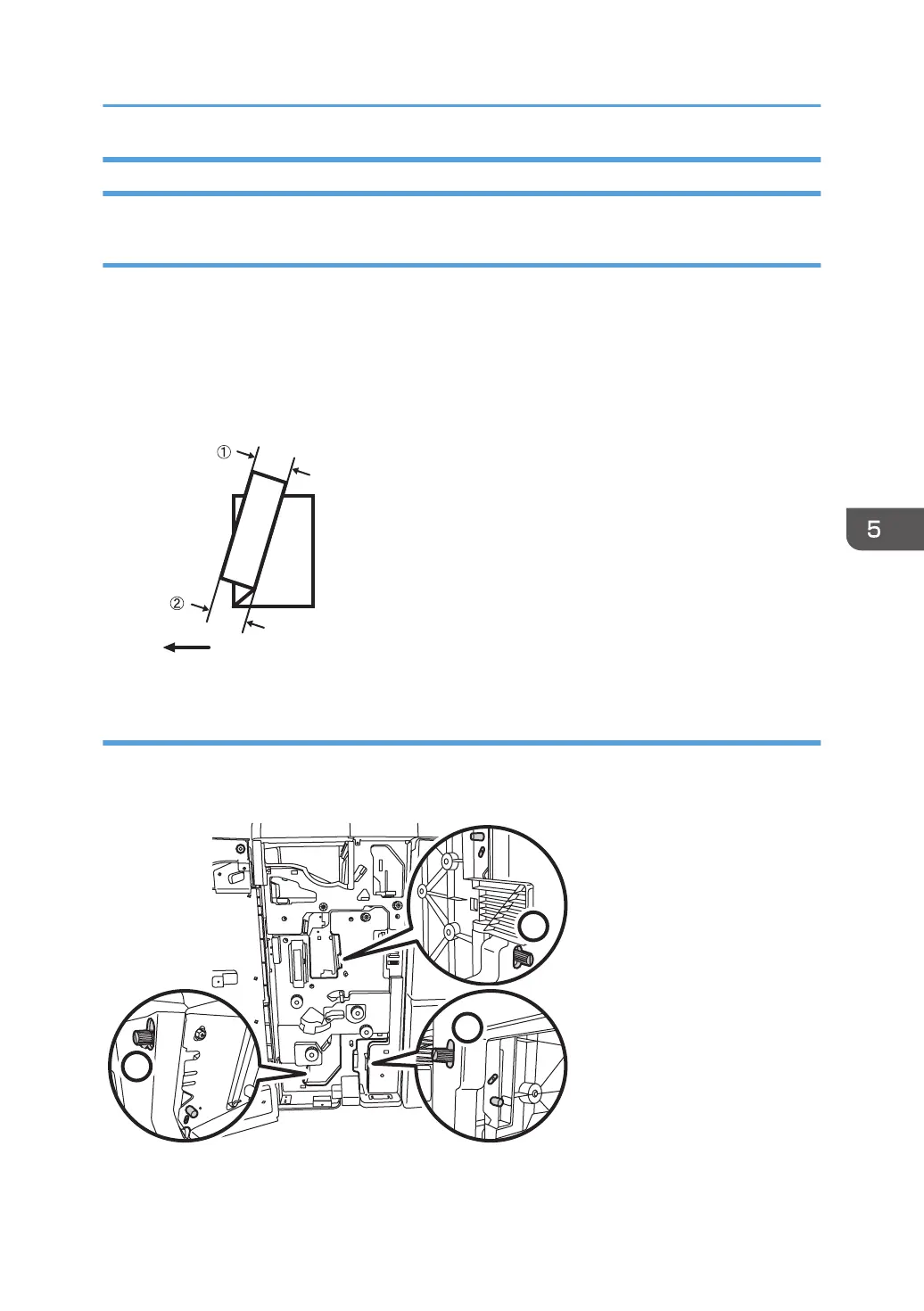

<Folding deviation sample of L2 for Z-fold>
L2
L2
Paper feed direction
CEZ531
Solution:
Adjust the deviation.
The multi-folding unit has three adjusting screws (L1, L2, and L3) to adjust deviation.
L3
L1
L2
CEZ509
Multi-Folding Unit
97

Ricoh Pro C5200s Specifications

General

Print Technology	Laser
Max Paper Size	330.2 x 487.7 mm
Monthly Duty Cycle	300, 000 pages
Print Speed	65 ppm
Resolution	1200 x 4800 dpi
Paper Input Capacity	8, 250 sheets
Paper Weight	52 to 360 gsm
Duplex Printing	Standard
Network Connectivity	Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Media Sizes	A3, A4, A5, B4, B5
Supported Media Types	Plain, Recycled, Coated, Envelope
Warm-up Time	Less than 5 minutes
