[:SOURce<n>]:FUNCtion:RAMP:SYMMetry
Syntax
[:SOURce<n>]:FUNCtion:RAMP:SYMMetry {<val>|MINimum|MAXimum}
[:SOURce<n>]:FUNCtion:RAMP:SYMMetry? [MINimum|MAXimum]
Description
Set or query the symmetry of the ramp.
Parameter
Name Type Range Default
<val> Real 0% to 100% 10%
<n> Discrete {1|2} 1
Explanation

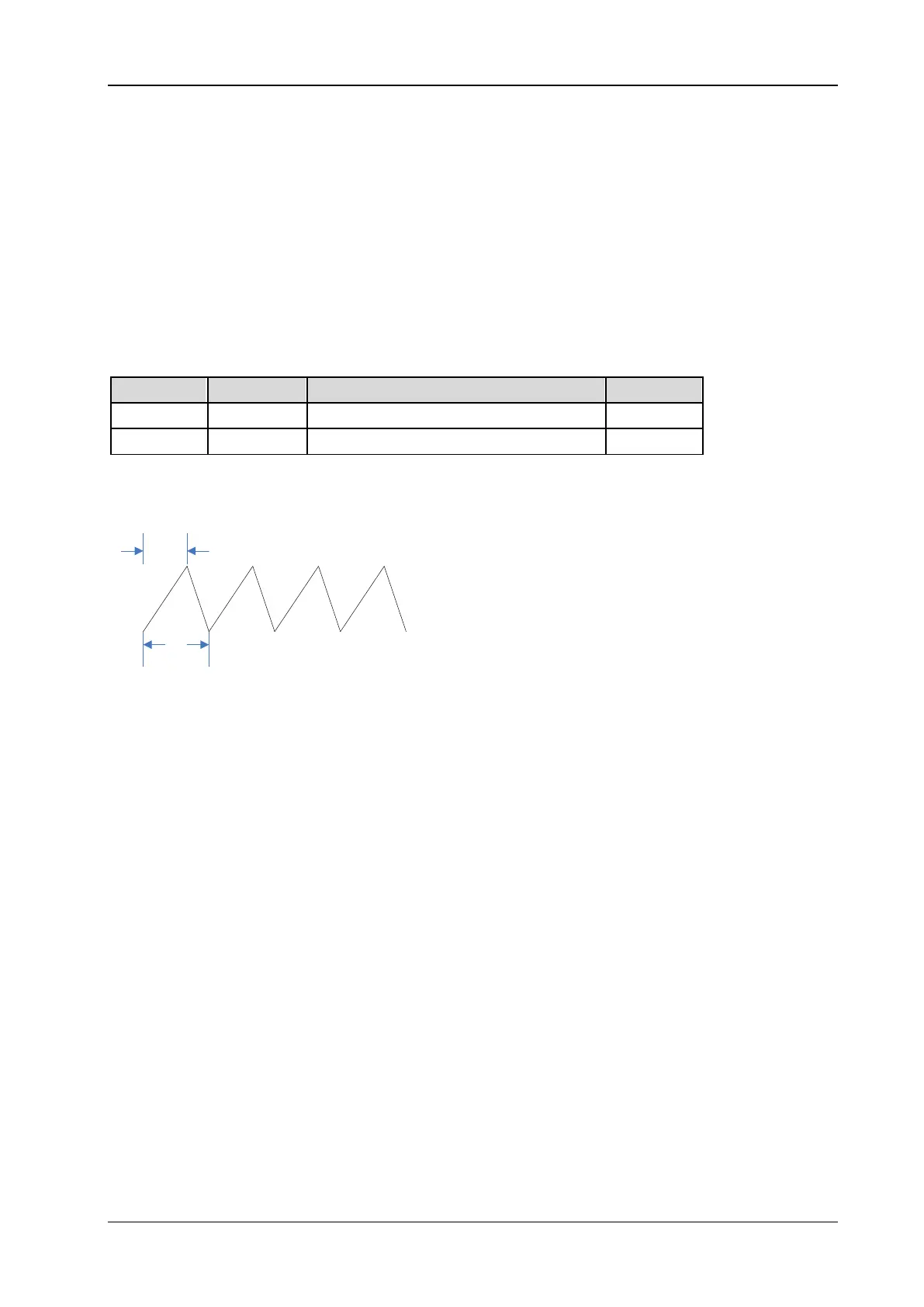

Symmetry is defined as the percentage that the rising period takes up in the whole period.
T
t
symmetry=t/T*100%
Return Format
The query returns the current symmetry in scientific notation.
