3 Programming Demos RIGOL
MSO2000A/DS2000A Programming Guide
LabVIEW Programming Demo
The program used in this demo: LabVIEW 2009
The functions realized in this demo: read the waveform data of CH1 on the screen.
1. Run LabVIEW 2009, create a VI file and name it as MSO2000A_Demo_LABVIEW.

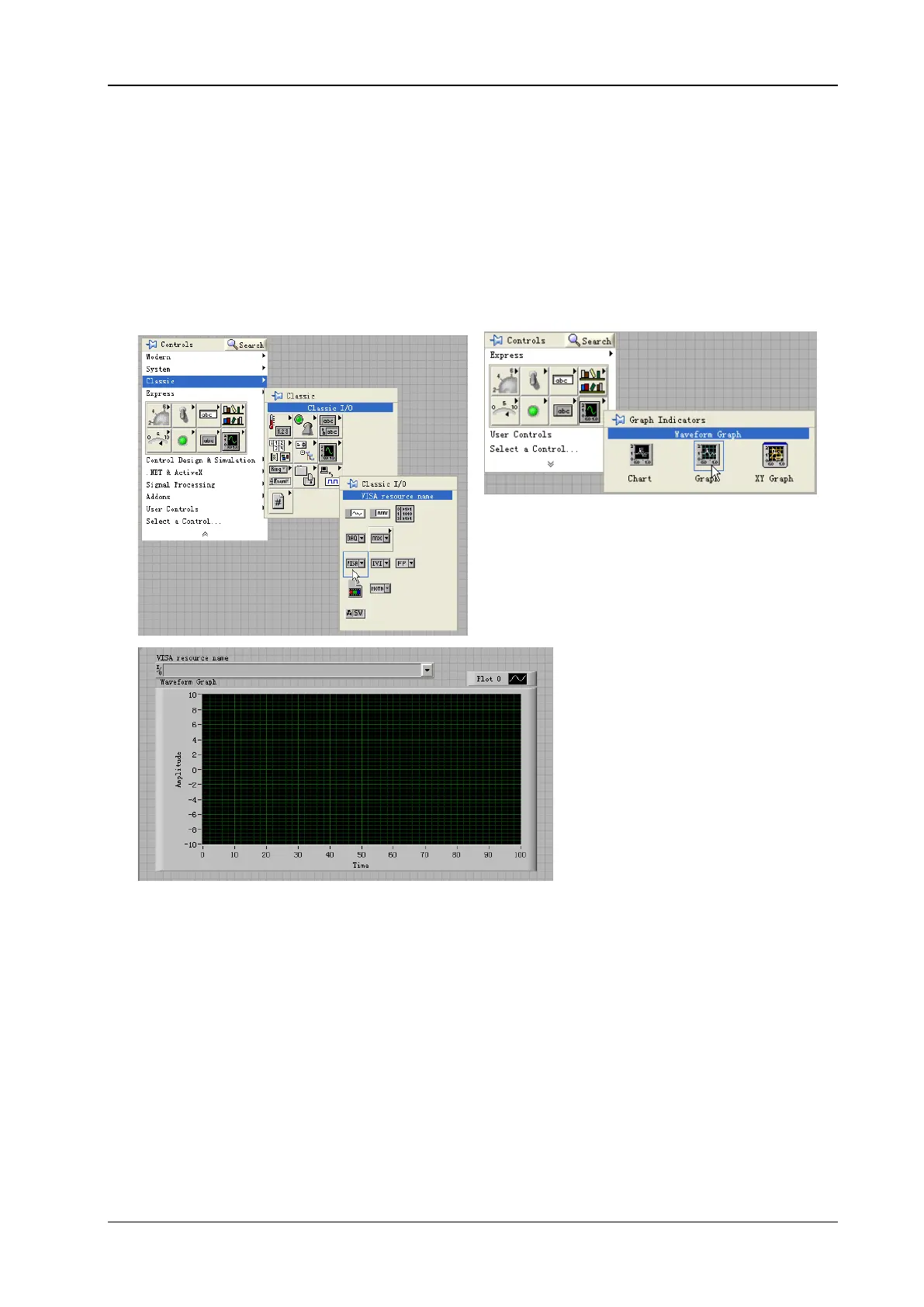

2. Add the VISA resource name and Waveform Graph controls, as shown in the figures below.
3. Open the Block Diagram interface. Right-click on the VISA resource name and you can select
and add the following functions from VISA Palette from the pop-up menu: VISA Write, VISA
Read, VISA Open and VISA Close.
