3 Programming Demos RIGOL

MSO2000A/DS2000A Programming Guide

3-11

Matlab Programming Demo

The program used in this demo: MATLAB R2009a

The function realized in this demo: make FFT operation on the waveform data and draw the

waveform.

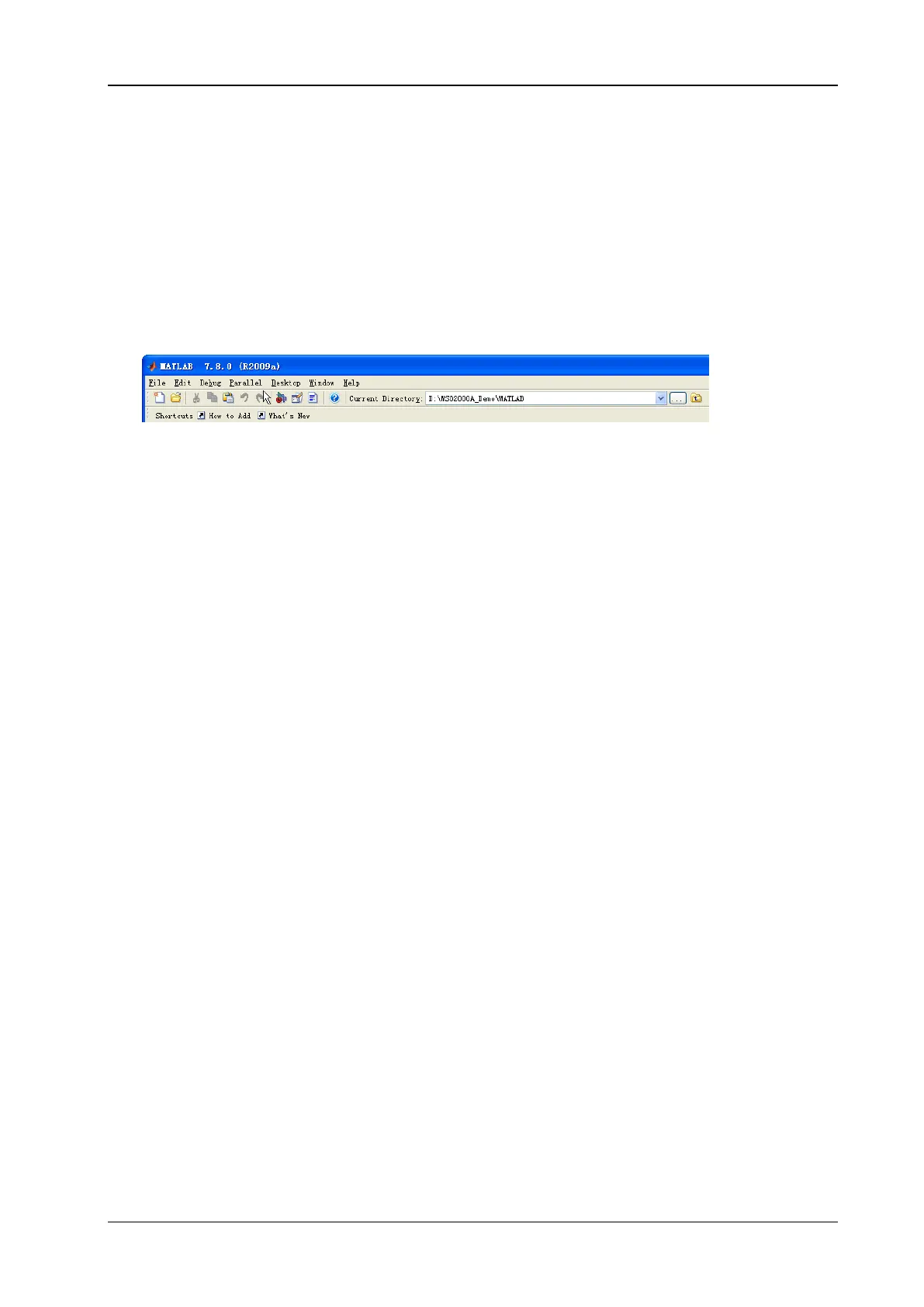

1. Run the Matlab software and modify the current directory (namely modify the Current Directory at

the top of the software). In this demo, the current directory is modified to

D:\MSO2000A_Demo\MATLAB.

2. Click File  New  Blank M-File in the Matlab interface to create an empty M file. Add the

following codes in the M file:

% Create VISA object . 'ni' is the saler Parameter and can be agilent, NI or tek.

'USB0::0x1AB1::0x04B0::DS2A0000000000::INSTR' is the device resource descriptor. You need to

set the device property. In this demo, set the length of the input buffer to 2048

MSO2000A = visa( 'ni','USB0::0x1AB1::0x04B0::DS2A0000000000::INSTR' );

MSO2000A.InputBufferSize = 2048;

% Open the VISA object created

fopen(MSO2000A);

% Request data

[data,len]= fread(MSO2000A,2048);

% Turn off the device

fclose(MSO2000A);

delete(MSO2000A);

clear MSO2000A;

% Data processing. The waveform data read contains the TMC header. The length of the header is 11

bytes; wherein, the first 2 bytes are the TMC header denoter (#) and the width descriptor (9)

respectively, the 9 bytes following are the length of the data which is followed by the waveform data

and the last byte is the terminator (0x0A). Therefore, the effective waveform points read is from the

12nd to the next to last.

wave = data(12:len-1);

wave = wave';

subplot(211);

plot(wave);

fftSpec = fft(wave',2048);
